Product Details:
Payment & Shipping Terms:
|
| Overall Length: | 35-100mm | Diameter: | D2-20MM |
|---|---|---|---|
| Coating: | Customize Acceptable | Application: | CNC Process |
| Place Of Origin: | Guangdong, China (Mainland) | Usage: | General High Speed Cutting |
| High Light: | form cutting tools,mill form cutter |
||

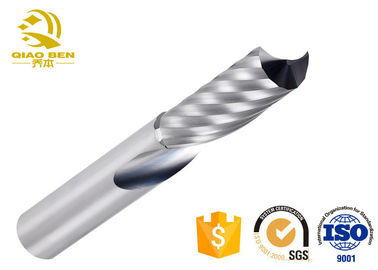

Forming Milling Cutter Factory Direct Sale Tungsten Steel Taper Milling Tool Cutter
ATTACTION:
1.Make sure work piece and machine are stable and use a precision holder.
2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
F-ED-001 end mill Features:
1. Suitable for steels & cast iron (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
Tungsten Carbide Flat Endmill, Square End Mill Cutting Tools For Metal(Standard Type) |
|||||
| Machining Range:AL5052,AL6063,AL6061,AL7075 | |||||
| EDP NO. | Diameter | Flute Length | Flute | O.AL | Shank Dia |
| 2102010581 | 1.0 | 3 | 4 | 50 | 4 |
| 2102010756 | 1.5 | 4.5 | 4 | 50 | 4 |
| 2102010580 | 2.0 | 6 |
4 |
50 | 4 |
| 2113010429 | 2.5 | 7.5 | 4 | 50 | 4 |
| 2102010384 | 3.0 | 9 | 4 | 50 | 4 |
| 2102010595 | 4.0 | 12 | 4 | 50 | 4 |
| 2113010430 | 5.0 | 15 | 4 | 50 | 6 |
| 2113010431 | 6.0 | 18 | 4 | 50 | 6 |
| 2113010432 | 8.0 | 24 | 4 | 60 | 8 |
| 2113010433 | 10.0 | 30 | 4 | 75 | 10 |
| 2113010434 | 12.0 | 36 | 4 | 75 | 12 |
chamfer mill Features:
1. Suitable for Aluminum alloy (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Super raw material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
|
Grain Size:0.7um 3320N/mm2 |
Grain Size:0.6um 4000N/mm2 |
Grain Size:0.5um 4300N/mm2 |
Grain Size:0.5um 4300N/mm2 |
Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 20 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Our advantage:
ATTACTION:
