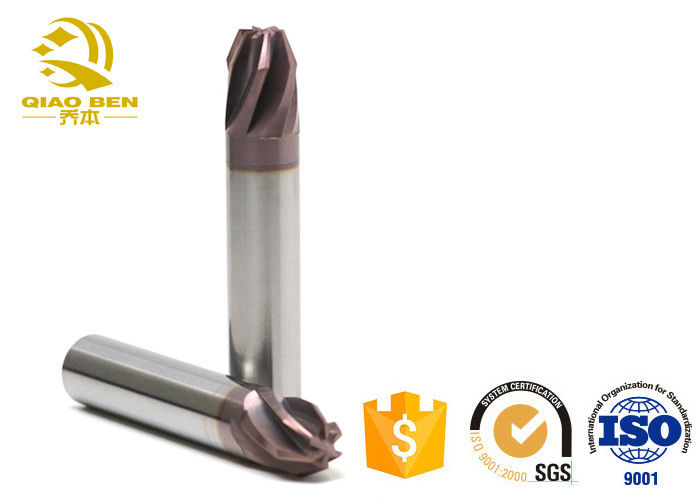

Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length

Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length
Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length

Large Image :  Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: FEMR11
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, D/A,
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Overall Length: 35-100mm Diameter: D8-20MM
Application: CNC Process Place Of Origin: Guangdong, China (Mainland)
Suitable For: Haller/saacke Usage: General High Speed Cutting
High Light:

mill form cutter

,

45 degree chamfer tool

Forming Milling CutterFactory Direct Sale Chamfering Cnc Carbide Square Tool Cutter

Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length 0



End Mill Tool material composition:

1. Physical Properties:

a. Hardness greater than or equal to 92.6 HRA;

b. Density greater than or equal to 14.4g/cm³;

c. TRS greater than or equal to 3800 N/mm²;

d. Free of ETA phase condition;

e. No contamination by other materials;

f. Porosity = A02/ B00 / C00 ;

g. Uniform and consistent grain size. No grain size can be larger than specified.

h. Chromium carbide grain growth inhibitor only.

2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;

3. It's proposed cutting less than 65HRC;



EDP No. Dia(mm) Angle Flute Length(mm) Flutes Shank Dia(mm) OverLength(mm)
2207010605 0.4 90 8 2 4 45
2207010229 0.5 127 0.87 2 4 50
2207010160 0.5 90 5 2 4 50
2207010342 1 71 9.94 2 4 50
2207010089 1 90 5.00 2 4 50
2207010085 1.2 120 5 2 4 50
2207010606 1.2 90 5.0 2 4 50

Super raw material

HRC45 HRC55 HRC60 HRC65
YG10X YG10.2 &WF25(Taiwan) K44 & K40 (German) H10F (Sweden)

Grain Size:0.7um
Co:10 %
Flexural strength:

3320N/mm2

Grain Size:0.6um
Co:10 %
Flexural strength:

4000N/mm2

Grain Size:0.5um
Co:12 %
Flexural strength:

4300N/mm2

Grain Size:0.5um
Co:10 %
Flexural strength:

4300N/mm2



1. Physical Properties:overview

a. Hardness greater than or equal to 92.6 HRA;

b. Density greater than or equal to 14.4g/cm³;

c. TRS greater than or equal to 3800 N/mm²;

d. Free of ETA phase condition;

e. No contamination by other materials;

f. Porosity = A02/ B00 / C00 ;

g. Uniform and consistent grain size. No grain size can be larger than specified.

h. Chromium carbide grain growth inhibitor only.

2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;

3. It's proposed cutting less than 65HRC;



Using multifunctional superfine grain tungsten steel material has better wear resistance and strength to belong to high hardness, high speed milling cutter, cutting edge passivation treatment not only makes the blade intensity increase tool life, also can make in the later than no passivation cutting tool machining more smooth and bright, the handle end chamfering processing, make the clamping more easily, also reduce the cutter wear and tear of the fixture,



ALTIN high aluminum titanium coating process so as to improve the machining efficiency, can increase the tool life under the same cutting speed, unique chip groove shape, even in the groove and in cavity type processing can show the excellent performance,Sharp cutting edge and large screw Angle design effectively prevent the generation of chip deposition, the seismic design of the whole edge, can inhibit the chatter in the process of processing, improve the quality of the processing surface, in order to get the best cutting surface and tool life, please be sure to use high precision, high rigidity, good dynamic balance of the tool holder clamp.

Chamfering Square Forming Milling Cutter High Rigidity 35-100 Mm Overall Length 1



Q:Are you Manufacture?

A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?

A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

Q: Can you produce non-standard tools?

A: Yes, we can produce non-standard tools as per your drawing.

We also can design tools for you as per your usage requirement

Q:What is your advantages?

A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.



Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
