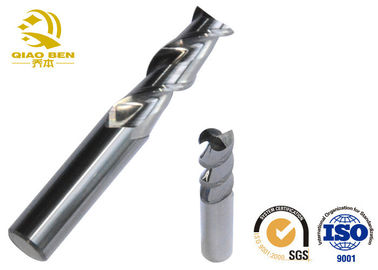

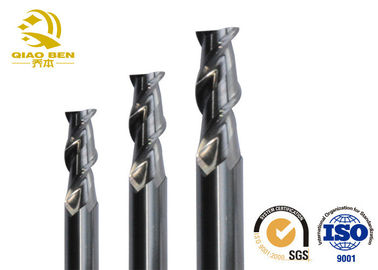

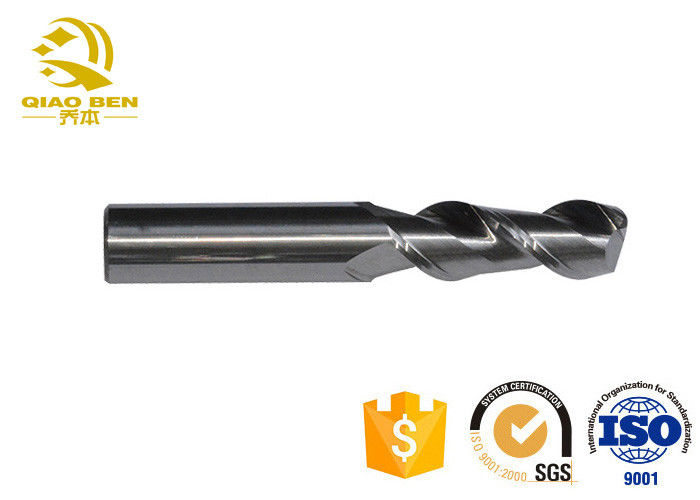

Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill

Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill
Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill

Large Image :  Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: BEM021
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, D/A,
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Overall Length: 35-100mm
Diameter: D4-20MM Coating: AlTiN
High Light:

corner rounding milling cutters

,

carbide corner rounding cutter

Rounded Edge End Mil lManufacturers of high quality products of the whole carbide end milling cutter side solid handle
Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill 0

      Professional custom all kinds of milling cutter for cutting processing applications to build solid carbide end mill series, has the advantages of flexibility, high speed and economic benefits, is designed to provide excellent cost-effective, adopt new fine grain tungsten steel material has high wear resistance and strength, to belong to high hardness, high speed cutting application of universal milling cutter



        the blade is covered ALTIN nano coating, can on heat treatment of materials directly under 60 ° high-speed rough machining to finish machining, reduce the changeover times, improve efficiency, save the schedule.2 blade cutting groove is given priority to, 4 blade with lateral milling and face milling is given priority to, suggested that cutting HRC60 ° within the steel material.

In order to obtain a better cutting surface and prolong the life of the milling cutter, it is necessary to use a tool handle with high precision, high rigidity and good dynamic balance.Before using the milling cutter, please test the tool deflection. If the accuracy is more than 0.01mm, please correct it before cutting



The shorter the length of the cutter extension chuck, the better. If the extension is longer, please adjust the speed, feed speed or cutting amount by yourself.

 steel.Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill 1

Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill 2


End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.




Milling Machine Rounded Edge End Mill / 3 Flute Side Cutting End Mill 3
 Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “
JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “
JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
