Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers

Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers
Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers

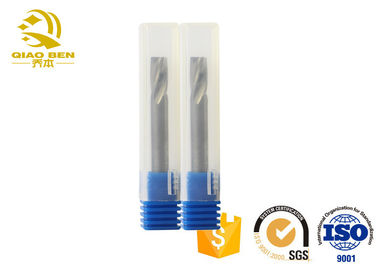

Large Image :  Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: FEMR01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, D/A,
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Overall Length: 50-10mm
Diameter: D1-20MM Application: CNC Process
Material: Tungsten Steel Other Service: OEM/ODM
High Light:

form cutting tools

,

mill form cutter

Factory Direct Supply 45 Chamber Tapered Alloy Reamer Customized professional manufacturers carbide spiral reamers

Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers 0

End Mill Tool material composition:

1. Physical Properties:

a. Hardness greater than or equal to 92.6 HRA;

b. Density greater than or equal to 14.4g/cm³;

c. TRS greater than or equal to 3800 N/mm²;

d. Free of ETA phase condition;

e. No contamination by other materials;

f. Porosity = A02/ B00 / C00 ;

g. Uniform and consistent grain size. No grain size can be larger than specified.

h. Chromium carbide grain growth inhibitor only.

2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;

3. It's proposed cutting less than 65HRC;

Super raw material

HRC45 HRC55 HRC60 HRC65
YG10X YG10.2 &WF25(Taiwan) K44 & K40 (German) H10F (Sweden)

Grain Size:0.7um
Co:10 %
Flexural strength:

3320N/mm2

Grain Size:0.6um
Co:10 %
Flexural strength:

4000N/mm2

Grain Size:0.5um
Co:12 %
Flexural strength:

4300N/mm2

Grain Size:0.5um
Co:10 %
Flexural strength:

4300N/mm2

Super coating

Item AlTiN TiAIN TiSiN nACo
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue





Other Service:  OEM/ODM or custom-made



1. Physical Properties:overview

a. Hardness greater than or equal to 92.6 HRA;

b. Density greater than or equal to 14.4g/cm³;

c. TRS greater than or equal to 3800 N/mm²;

d. Free of ETA phase condition;

e. No contamination by other materials;

f. Porosity = A02/ B00 / C00 ;

g. Uniform and consistent grain size. No grain size can be larger than specified.

h. Chromium carbide grain growth inhibitor only.

2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;

3. It's proposed cutting less than 65HRC;

Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers 1Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers 2

Professional 45 Degree Chamfer End Mill Customized Carbide Spiral Reamers 3



Q:Are you Manufacture?

A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?

A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

Q: Can you produce non-standard tools?

A: Yes, we can produce non-standard tools as per your drawing.

We also can design tools for you as per your usage requirement

Q:What is your advantages?

A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.



Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
