ShenZhen Joeben Diamond Cutting Tools Co,.Ltd
Home ProductsMonocrystal Diamond Cutting Tools

CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac

China ShenZhen Joeben Diamond Cutting Tools Co,.Ltd certification
China ShenZhen Joeben Diamond Cutting Tools Co,.Ltd certification
Low price and good quality,this helped me a lot.Timely booking,satisfactory service and full support.Thank you very much...Im very happy....

—— Mr ruddy

I'm happy to work with you in last years,pretty nice support on business and a special personal.Hope everything goes great next year in your job and family.

—— Arturo Mimbela from USA

Excellent quality and durability as always.Greattach products,awesome prices!

—— Jody willock

AS discussed please find attached my supplier for diamond tooling they make a very high quality product are very professional and good to work with.I have a small amout of there bits at my workshop next time your around if you would like to look at them.They can custom make most bits as well at very reasonable prices.

—— Phillip Charles

I'm Online Chat Now

CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac

CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac
CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac

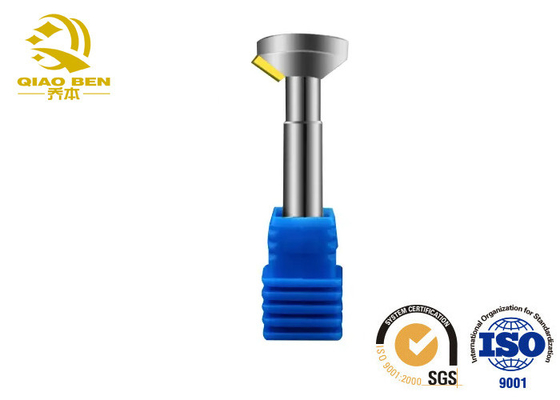

Large Image :  CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: MCDMC310
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Product Name: Mono Crystal Diamond Cutting Tool Diameter 6, 8, 10, 12 Material: Carbide, Yellow Single Crystal Diamond
Application: Engraving Machine, Engraving Machine, High Gloss Machine Processing: Acrylic,copper,Aluminum, Brass, Plastic
Place Of Origin: Shenzhen,Guangdong,China Advantages: Cleaning Surface With Polishing And Highlight Effect
Suitable For: Acrylic, PVC, PC, PET, PMMA, Gold, Silver, Cooper Size: Customizable
High Light:

CNC Chamfer mill cutter

,

MCD Chamfer mill cutter

CNC MCD Chamfer mill cutter Mono Diamond crystal drill Router bit engraving cutting tool machine aluminum copper manufacturerCNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac 0

Application scope of natural diamond milling cutter: hardware parts; Auto parts; Surface treatment; Craft products; Fine carving; Copper batch flower; Mobile phone metal buttons; Mobile phone case; Digital shell; Metal highlight batch flower; Watch surface, character nails; The case reflects the knife; Name plate, sign highlight batch flower; Car CD pattern; Car colorful pattern; Car sun pattern; Aluminum products highlight; Electrical shell batch flower; Electrical panel; Vehicle panel; Computer peripherals; Transparent computer case; Acrylic polishing; Compression (plexiglass) highlight (polishing) chamfer; Lenses; Windows; Motor commutator fine car, etc. Mainly used for all kinds of metals, gold, silver, copper, aluminum alloy, zinc alloy and non-metallic materials, acrylic, PVC, PC, plastic and other materials of high light chamfer and straight edge mark light cutting, cutting surface bright mirror high light effect, long service life. Customized tool tip diamond width, Angle, material, tool bar size. The R Angle arc can be controlled at 0.02-0.05, the chamfer knife is generally used in 45°, 75°, 78°, and the diamond width is 3.0* 3.0mm.
Processing features: strong stability, mirror high light, smooth chip, reduce cutting resistance, improve processing efficiency and tool life.


The high-quality natural diamond is selected, and the natural diamond single crystal is welded to the tool shank by a special welding process. It is made by special geometric angle design and sharpening technology. According to customer requirements, it can be processed into various angles and radians. It is mainly used for aspheric and free optical surface processing, Wiener processing, ultra-precision processing, etc.

 The single crystal diamond tool is brittle, the blade is very sharp, and it is prone to chipping when it is impacted. Therefore, it should be used under balanced and vibration-free working conditions as much as possible. At the same time, the rigidity of the workpiece and the tool and the rigidity of the entire system should be improved as much as possible. To increase its anti-seismic capacity, it is advisable that the cutting amount be less than 0.05mm.


Welcome and congratulations!You found us a professional factory!
Size & Design

1.We not only supply all kinds of high quality solid carbide turning tool ,but

also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw

Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.

2. We have 0.02mm-25mm different diameter and 38mm-150mm length

Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you

to choose.

3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can

produceaccording to your drawing,too.Or the hot deisgned recommend

to you.

4. HS Code reference for you to control everything:8207709000.
5. Mixed size and types in one batch available.
6. For distributor,we can label your brands on cutters and plastic box.
Plating

1. We accept Mix coated in the same model number, Also one batch with

different coating and types.

2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!
MOQ (Small Qty ) 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.

OEM

One-Step Packing

We package all our goods carefully.We also accept your packing design OEM

packing it for your control.

Samples Service 1. Some items free samples for you.
2. Free samples but pay shipping cost.
3. Lowest shiping fee for you to choose.
4. Order to us,sample fee will be refund to you.
5. Become our VIP clients,free samples for you!
6.OEM samples are hot welcome.
MCD Recommended Cutting Condition
Work piece Cutting Speed Depth of Cut Feed Rate
(m/min) (mm) (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbid 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Ceramics
Wood 1000-2500 0.2~5.0 010~0.50

1. Customers send detailed inquiry to us by email;

2. We reply with price, specifications, packing, photos, and other details;

3. Both of us agree the price and confirm the details;

4. We write the proforma invoice and send to customers;

5. Customers make deposit;

6. We make mass production samples;

7. We send mass product samples or send photos to customers for approval;

8. Customers confirm the mass production samples;

9. We start mass production.(we have huge stock for most standard end mills);


CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac 1

Business Terms

Accepted Delivery Terms: FOB,CNF,CIF

Accepted Payment Currency: USD, CNY

Accepted Payment Type: T/T, Western Union

Nearest Port: Guangzhou port, Shenzhen port, Shanghai port

Response Rate (last 30 days)



98.6% of buyers who contacted this supplier received a response within 24 hours.

Average Response Time (7 days)

The supplier's average response time of received inquiries is within 12 hours.



Quotation Performance (last 30 days)

The supplier have sent 33 quotes to buyers in last 30 days.

CNC MCD Chamfer Mill Cutter Mono Diamond Crystal Drill Router Bit Engraving Cutting Tool Machine Aluminum Copper Manufac 2



Q: Are you Manufacture?

A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?

A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

Q: Can you produce non-standard tools?

A: Yes, we can produce non-standard tools as per your drawing.

We also can design tools for you as per your usage requirement

Q: What is your advantages?

A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.



Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1. Make sure work piece and machine are stable and use a precision holder.
  • 2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3. The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
