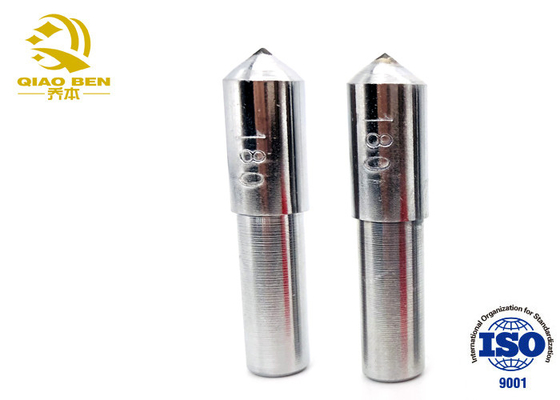

CNC Machine MCD Monocrystal Diamond Cutting Tools Jewelry Engraving Machine Aluminium Highlights tool
Payment & Shipping Terms:
|Product Name:||Mono Crystal Diamond Cutting Tool Diameter 6, 8, 10, 12||Material:||Carbide, Yellow Single Crystal Diamond|
|Processing:||Acrylic,copper,Aluminum, Brass, Plastic||Place Of Origin:||Shenzhen,Guangdong,China|
|Suitable For:||Acrylic, PVC, PC, PET, PMMA, Gold, Silver, Cooper||Size:||Customizable|
Customizable MCD CNC Cutting Tools,
Jewelry Engraving Machine CNC Cutting Tools,
Faceting Machine Diamond cutting tools
Factory Supply Jewelry Engraving machine cnc cutting tools Diamond cutting tools for faceting machine
Types of diamond tools
① Natural diamond tool: Natural diamond has been used as a cutting tool for hundreds of years. The natural single crystal diamond tool has been finely ground, and the cutting edge can be extremely sharp. The cutting edge radius can reach 0.002μm, which can realize ultra-thin cutting and can It produces extremely high workpiece accuracy and extremely low surface roughness, and is a recognized, ideal and irreplaceable ultra-precision machining tool.
② PCD diamond cutting tools: Natural diamonds are expensive, and polycrystalline diamond (PCD) is widely used in cutting. After the success, natural diamond tools have been replaced by artificial polycrystalline diamond in many occasions. PCD raw materials are rich in sources, and its price is only one tenth to one tenth of natural diamond. PCD tools cannot grind extremely sharp diamonds. The cutting edge, the surface quality of the processed workpiece is not as good as that of natural diamond, and it is not easy to manufacture PCD inserts with chipbreakers in the industry. Therefore, PCD can only be used for fine cutting of non-ferrous metals and non-metals, and it is difficult to achieve ultra-high precision. Precision mirror cutting.
The high-quality natural diamond is selected, and the natural diamond single crystal is welded to the tool shank by a special welding process. It is made by special geometric angle design and sharpening technology. According to customer requirements, it can be processed into various angles and radians. It is mainly used for aspheric and free optical surface processing, Wiener processing, ultra-precision processing, etc.
The single crystal diamond tool is brittle, the blade is very sharp, and it is prone to chipping when it is impacted. Therefore, it should be used under balanced and vibration-free working conditions as much as possible. At the same time, the rigidity of the workpiece and the tool and the rigidity of the entire system should be improved as much as possible. To increase its anti-seismic capacity, it is advisable that the cutting amount be less than 0.05mm.
We supply service for re-lapping and polishing the diamond tools to increase tool life and performance. The tools can be re-polished about 60-70 times.We have more than 150 trained technicians who can offer fast re-polishing service for diamonds tools.For more details,please contact our sales.
We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to selection the most suitable tool and machines for your company.
|Welcome and congratulations!You found us a professional factory!|
|Size & Design||
1.We not only supply all kinds of high quality solid carbide turning tool ,but
also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw
Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.
2. We have 0.02mm-25mm different diameter and 38mm-150mm length
Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can
produceaccording to your drawing,too.Or the hot deisgned recommend
|4. HS Code reference for you to control everything:8207709000.|
|5. Mixed size and types in one batch available.|
|6. For distributor,we can label your brands on cutters and plastic box.|
1. We accept Mix coated in the same model number, Also one batch with
different coating and types.
|2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!|
|MOQ (Small Qty )||5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.|
We package all our goods carefully.We also accept your packing design OEM
packing it for your control.
|Samples Service||1. Some items free samples for you.|
|2. Free samples but pay shipping cost.|
|3. Lowest shiping fee for you to choose.|
|4. Order to us,sample fee will be refund to you.|
|5. Become our VIP clients,free samples for you!|
|6.OEM samples are hot welcome.|
|MCD Recommended Cutting Condition|
|Work piece||Cutting Speed||Depth of Cut||Feed Rate|
|Aluminum(5~8% SI )||350~1600||0.05~2.50||0.10~0.40|
|Aluminum(8~12% SI )||350~1300||0.05~2.50||0.10~0.40|
|Aluminum(14~18% SI )||160~800||0.05~2.50||0.05~0.25|
1. Customers send detailed inquiry to us by email;
2. We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4. We write the proforma invoice and send to customers;
5. Customers make deposit;
6. We make mass production samples;
7. We send mass product samples or send photos to customers for approval;
8. Customers confirm the mass production samples;
9. We start mass production.(we have huge stock for most standard end mills);
Accepted Delivery Terms: FOB,CNF,CIF
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, Western Union
Nearest Port: Guangzhou port, Shenzhen port, Shanghai port
Response Rate (last 30 days)
98.6% of buyers who contacted this supplier received a response within 24 hours.
The supplier's average response time of received inquiries is within 12 hours.
Quotation Performance (last 30 days)
The supplier have sent 33 quotes to buyers in last 30 days.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
