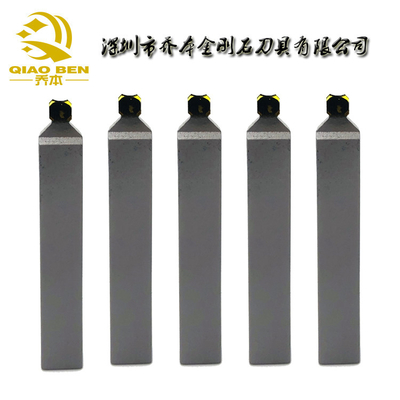

CNC Machine MCD Monocrystal Diamond Cutting Tools Jewelry Engraving Machine Aluminium Highlights tool
Payment & Shipping Terms:
|Flute Length:||40-70mm||Suitable For:||Acrylic, PVC, PC, PET, PMMA, Gold, Silver, Cooper|
|Material:||Carbide, Yellow Single Crystal Diamond||Customized Support:||OEM, ODM, OBM|
|Advantages:||Cleaning Surface With Polishing And Highlight Effect||Packing:||1ps/ Plastic Box|
|Product Name:||Single Crystal Diamond (MCD) Polishing Bits||Application:||Internal External Turning Tool|
Acrylic Carbide MCD Diamond Tool,
PET PMMA MCD Diamond Tool,
Chamfering End PCD Milling Cutter
R8 wholesale Diamond tool MCD 45 degree Chamfering end mill manufacturer PCD milling cutter
Scope of application of natural diamond milling cutter: hardware car parts; auto parts; surface treatment; handicraft products; fine carving; Reflecting knife in the shell; high-gloss pattern of nameplate and sign; car CD pattern; car colorful pattern; car sun pattern; aluminum product high-gloss; electrical shell pattern; electrical panel; vehicle panel; computer peripheral equipment; computer transparent case; acrylic polishing; Lenses; windows; motor commutator fine turning, etc.
Processing effect: mainly used for high-gloss chamfering and straight-edge high-gloss cutting of various ferrous metals, gold, silver, copper, aluminum alloy, zinc alloy and non-metallic materials, acrylic, PVC, PC, plastic and other materials, cutting surface glossy mirror glossy effect, long service life.
The single crystal diamond tool is very brittle, the blade is very sharp, and it is prone to chipping when it is impacted. Therefore, it should be used under balanced and vibration-free working conditions as much as possible. At the same time, the rigidity of the workpiece and the tool and the rigidity of the entire system should be improved as much as possible. , to increase its anti-seismic capacity, the cutting amount below 0.05mm is appropriate.
>> Natural Diamond and Mono-Crystal Diamond can not be used to process ferrous metal because they have affinity for ferrous metal. The applications of Natural Diamond and Mono-Crystal Diamond are non-ferrous materials precious metal, high melting point metal and non-metallic materials.
>> The features for our Crystal diamond tools:
The diamond tools have low consumption of unit knife, long useage, easy to use features, and to ensure high precision and each mirror smooth finish
>> The more detail information about our crystal diamond tool:
>> Diamond cutting tools are easily damaged, so the cutting edge should be covered with rubber or plastic caps when they are not in use.
>> Store them in separate containers when not in usage.
>> When inspecting and setting up,plz use optical instruments if possible.
>> Use copper shimstock or plastic between the cutting tools and micrometers or height gauges. If these are used, to avoid breaking the cutting edge.
>> Don't bring the diamond into contact with the work in a stationary position or stop the machine during the cut.
>> High speed reduces cutting edge pressure; low speed increases it, causing diamonds to break down more rapidly.
Vibration also shortens tool life, so machine tools should be in good condition.
Monocrystal diamond tools package:1pcs in a plastic or PVC box
|MCD Recommended Cutting Condition|
|Work piece||Cutting Speed||Depth of Cut||Feed Rate|
|Aluminum(5~8% SI )||350~1600||0.05~2.50||0.10~0.40|
|Aluminum(8~12% SI )||350~1300||0.05~2.50||0.10~0.40|
|Aluminum(14~18% SI )||160~800||0.05~2.50||0.05~0.25|
|Welcome and congratulations!You found us a professional factory!|
|Size & Design||
1.We not only supply all kinds of high quality solid carbide turning tool ,but
also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw
Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.
2. We have 0.02mm-25mm different diameter and 38mm-150mm length
Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can
produceaccording to your drawing,too.Or the hot deisgned recommend
|4. HS Code reference for you to control everything:8207709000.|
|5. Mixed size and types in one batch available.|
|6. For distributor,we can label your brands on cutters and plastic box.|
1. We accept Mix coated in the same model number, Also one batch with
different coating and types.
|2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!|
|MOQ (Small Qty )||5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.|
We package all our goods carefully.We also accept your packing design OEM
packing it for your control.
|Samples Service||1. Some items free samples for you.|
|2. Free samples but pay shipping cost.|
|3. Lowest shiping fee for you to choose.|
|4. Order to us,sample fee will be refund to you.|
|5. Become our VIP clients,free samples for you!|
|6.OEM samples are hot welcome.|
1. Customers send detailed inquiry to us by email;
2. We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4. We write the proforma invoice and send to customers;
5. Customers make deposit;
6. We make mass production samples;
7. We send mass product samples or send photos to customers for approval;
8. Customers confirm the mass production samples;
9. We start mass production.(we have huge stock for most standard end mills);
Accepted Delivery Terms: FOB,CNF,CIF
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, Western Union
Nearest Port: Guangzhou port, Shenzhen port, Shanghai port
Response Rate (last 30 days)
98.6% of buyers who contacted this supplier received a response within 24 hours.
The supplier's average response time of received inquiries is within 12 hours.
Quotation Performance (last 30 days)
The supplier have sent 33 quotes to buyers in last 30 days.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Contact Person: Sales Manager
