Product Details:
Payment & Shipping Terms:
|
Flute Length: | 40-70mm | Suitable For: | Acrylic, PVC, PC, PET, PMMA, Gold, Silver, Cooper |
---|---|---|---|
Material: | Carbide, Yellow Single Crystal Diamond | Customized Support: | OEM, ODM, OBM |
Application: | Milling Machining | Advantages: | Cleaning Surface With Polishing And Highlight Effect |
Packing: | 1ps/ Plastic Box | Product Name: | Single Crystal Diamond (MCD) Polishing Bits |
High Light: | MCD Monocrystal Diamond Cutter,Nature Monocrystal Diamond Cutter,70mm Flute MCD Milling Cutters |

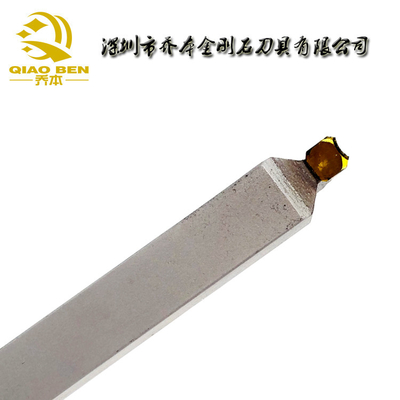

Can be customized MCD cutters Monocrystal Nature diamond non ferrous metal Sample Available
The hardness of natural diamond (diamond) reaches HV9000-10000, which is the hardest substance in nature. The finished tool can maintain dimensional stability for a long time during cutting, so it has a long service life. The circular arc part of the cutting edge of the tool made of natural diamond is observed under a 400 times microscope without gaps, and it is suitable for processing gold, silver, copper, aluminum (aluminum alloy), zinc (zinc alloy), acrylic (plexiglass) and other materials. The apparent roughness can reach Ra(0.01-0.025) μm. High cutting efficiency and stable machining accuracy.
1) Be sure to use a jacket of the appropriate size, because the jacket with serious wear or insufficient roundness and a tapered inner hole cannot provide enough clamping force, resulting in vibration or twisting of the tool handle and flying off.
2) When the tool handle is found to have uneven contact marks or grooves after the tool is clamped, it means that there is slippage or the inner hole of the fixture is deformed. The jacket should be replaced immediately. The tool handle and the collet must be fully tightened to prevent the tool handle from breaking or accidents.
3) Keep the knives clean after work, and use standard industrial solvents to remove dirt stuck to the knives.
4) Do not arbitrarily sharpen the tool and change the shape of the tool, because each grinding process requires professional grinding equipment and professional grinding skills. Otherwise, it is easy to cause the knife edge to break and cause accidents.
MCD Recommended Cutting Condition | |||
Work piece | Cutting Speed | Depth of Cut | Feed Rate |
(m/min) | (mm) | (mm/rev) | |
Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
Ceramics | |||
Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
Welcome and congratulations!You found us a professional factory! | |
Size & Design |
1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. |
|
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
|
4. HS Code reference for you to control everything:8207709000. | |
5. Mixed size and types in one batch available. | |
6. For distributor,we can label your brands on cutters and plastic box. | |
Plating |
1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
OEM One-Step Packing |
We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
Samples Service | 1. Some items free samples for you. |
2. Free samples but pay shipping cost. | |
3. Lowest shiping fee for you to choose. | |
4. Order to us,sample fee will be refund to you. | |
5. Become our VIP clients,free samples for you! | |
6.OEM samples are hot welcome. |
1. Customers send detailed inquiry to us by email;
2. We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4. We write the proforma invoice and send to customers;
5. Customers make deposit;
6. We make mass production samples;
7. We send mass product samples or send photos to customers for approval;
8. Customers confirm the mass production samples;
9. We start mass production.(we have huge stock for most standard end mills);
Business Terms
Accepted Delivery Terms: FOB,CNF,CIF
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, Western Union
Nearest Port: Guangzhou port, Shenzhen port, Shanghai port
Response Rate (last 30 days)
98.6% of buyers who contacted this supplier received a response within 24 hours.
The supplier's average response time of received inquiries is within 12 hours.
Quotation Performance (last 30 days)
The supplier have sent 33 quotes to buyers in last 30 days.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Our advantage:
