Product Details:
Payment & Shipping Terms:
|
Overall Length: | 40-100mm | Feature: | High Performance Cutting |
---|---|---|---|
Customized Support: | OEM, ODM, OBM | Workpiece Material:: | Aluminum/Copper/Acrylics/Plastic/Fibre |
Precision:: | High Precision | Packing: | 1ps/ Plastic Box |

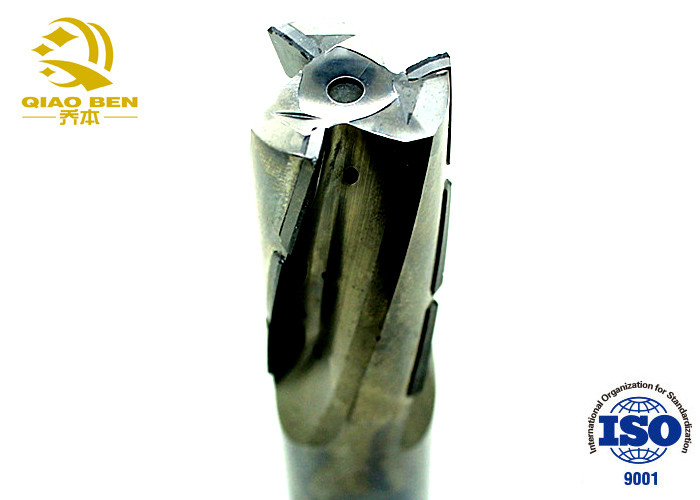

Product Name:: | PCD Endmill Tool With Coating For Acrylic Polishing NC Machining | Accepted Delivery Terms: | FOB、CNF、CIF |
High Light: | 40mm Length PCD Diamond Cutting Tools,CNF PCD Diamond Cutting Tools,Turning Cbn Grooving Inserts |
Customize High quality and Resistance PCD diamond cutting tools cbn grooving inserts for turning
【JOEBEN tool features 】JOEBEN tools mainly have the following characteristics:
1, long service time, sharp edge design, combined with new coating treatment, the tool is not easy to wear;
2, large choice, the same blade diameter, there are a variety of different blade length and full length, convenient for different degrees of processing speed and processing distance needs;
3, a wide range of processing materials, for cast iron, stainless steel, carbon steel, hardened steel, graphite, composite materials, acrylic and other different hardness materials for precision processing;
4, it is not easy to break the knife, the blade adopts scientific structure design, maximizes the rigidity and strength of the blade;
5, high processing efficiency, designed for precision and speed milling processing;
6, suitable for machine tools, Joeben CNC cutting tools can be used in CNC, computer gong, carving machine, CNC lathe or other machine tools;
7, high processing accuracy, the use of fine grain tungsten steel, precision CNC cutting edge grinding, plus coating treatment, the production of precision tools, only the use of precision tools, combined with precision equipment production, to produce precision products.
PCD milling cutter scope: suitable for gold, silver, copper, aluminum, acrylic, PC, PET...
Such as non-metallic materials carving milling processing.Hardware parts;Auto parts;Surface treatment;Craft products;Carved;Copper material,batch flower;Mobile phone metal buttons;Mobile phone case;Digital shell;Non-metallic high-gloss batch flower;
Clock surface, nail;Case internal reflecting knife;Nameplate, sign high-gloss batch flower;Car CD lines;Car colorful pattern;
Car sun pattern;Aluminum highlights;Electrical shell batch flower;Electrical panel;Vehicle panel;Computer peripherals;Transparent computer case;
Acrylic polishing;Acrylic (plexiglass) highlight (polishing) chamfering;The lens;Windows;Motor commutator fine car, etc.
1) Must use the appropriate size of the jacket, because of serious wear or not enough round and the inner hole with taper jacket, can not provide enough clamping strength, leading to vibration or twist the handle and fly off.
2) When the tool is found to have uneven contact marks or grooves on the tool handle after clamping, it indicates that there is slip or deformation of the inner hole of the fixture.
The jacket should be replaced immediately.
The tool handle and jacket must be fully tightened and firm, in order to encourage the tool handle fracture or accident.
3) Keep the tool clean after work, and use standard industrial solvents to remove dirt sticking to the tool.
4) Do not arbitrarily from the grinding tool and change the tool type, because each grinding process requires professional grinding equipment and professional grinding skills.
Otherwise, it is easy to cause knife edge fracture and accidents.
Welcome and congratulations!You found us a professional factory! | |
Size & Design |
1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. |
|
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
|
4. HS Code reference for you to control everything:8207709000. | |
5. Mixed size and types in one batch available. | |
6. For distributor,we can label your brands on cutters and plastic box. | |
Plating |
1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
OEM One-Step Packing |
We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
Samples Service | 1. Some items free samples for you. |
2. Free samples but pay shipping cost. | |
3. Lowest shiping fee for you to choose. | |
4. Order to us,sample fee will be refund to you. | |
5. Become our VIP clients,free samples for you! | |
6.OEM samples are hot welcome. |
Grade | Work-piece material | Hardness | V(m/min) | F(mm/rev) | Ap(mm) |
CBN | Gray cast iron | HB170-300 | 500-1500 | 0.1-0.4 | 0.1-1.5 |
Nodular cast iron | HB240-300 | 200-400 | 0.1-0.4 | 0.1-0.5 | |
Alloyed cast iron | HB240-300 | 150-300 | 0.05-0.4 | 0.1-0.5 | |
Fe-based P/M | HRC45-50 | 50-150 | 0.05-0.4 | 0.05-0.5 | |
Hardened steels | HRC55-65 | 80-200 | 0.05-0.2 | 0.05-0.2 | |
Heat-resistant alloys | 50-200 | 0.05-0.2 | 0.05-0.2 | ||
PCD | AI and AI alloys | 200-3000 | 0.05-0.5 | 0.05-1.0 | |
Non-mentals Cemented | 100-500 | 0.05-0.5 | 0.05-1.0 | ||
Carbide | 20-30 | 0.05-0.2 | 0.05-0.2 |
1. Customers send detailed inquiry to us by email;
2. We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4. We write the proforma invoice and send to customers;
5. Customers make deposit;
6. We make mass production samples;
7. We send mass product samples or send photos to customers for approval;
8. Customers confirm the mass production samples;
9. We start mass production.(we have huge stock for most standard end mills);
10. We show ready products' photos or customers inspect on site;
11. Customers make balance payment;
12. Delivery is arranged. Feedback from customers for better work in future.
13. We also make OEM and customized end mills.
We supply service for re-lapping and polishing the diamond tools to increase tool life and performance. The tools can be re-polished about 60-70 times.We have more than 150 trained technicians who can offer fast re-polishing service for diamonds tools.For more details,please contact our sales.
We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to selection the most suitable tool and machines for your company.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
