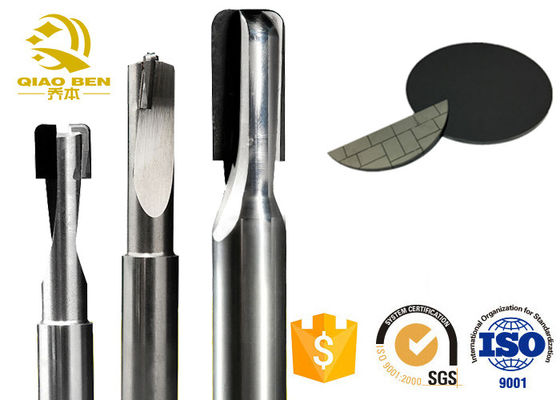

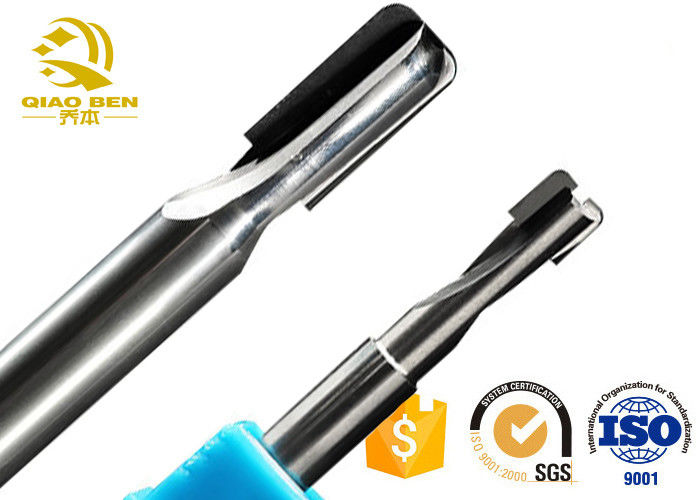

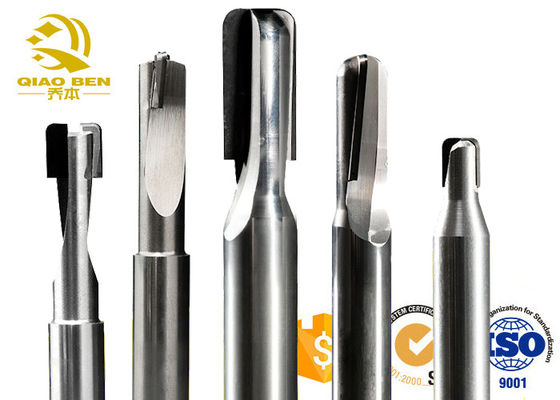

2 Flutes Diamond Cnc Milling Cutter Carbide Tungsten End Mills With PCD Blade

Diamond cnc milling cutter 1 or 2 Flutes Carbide tungsten end mills with PCD blade cutting

    The diamond polishing knife consists of two kinds of materials: PCD polycrystalline diamond rough polishing knife and ND natural diamond fine polishing knife, which are successively mounted on the special polishing knife disc. It can finish rough and fine polishing of acrylic sheet at one time in the diamond polishing machine, edging machine, CNC center or milling machine and other equipment.

The choice of PCD particle size is related to the tool processing conditions, such as the design for finishing or ultra-finishing machining tools, should choose high strength, good toughness, good impact resistance, fine grain PCD.
Coarse-grain PCD tools can be used for general rough machining.
The particle size of PCD material has a significant effect on tool wear and damage properties.
The results show that the larger the PCD size is, the stronger the tool wear resistance is.
PCD particle size is submicron, 2μm, 5μm, 10μm, 25μm and 2~30μm. CDW010 material with 10μm particle size is universal and has good edge resistance and wear resistance. In general, the larger the particle size is, the blade material has better wear resistance, while CDW302 material with mixed particle size of 2~30μm has better wear resistance.
As shown in the figure, the comparison of the chip resistance and wear resistance of different PCD granularity, as well as the comparison of the discharge characteristics and grindability.

PCD engraving tool's specialty:
To mobile phone shell, panel, mobile phone lens, digital lenses, camera lenses, MP3 / MP4 lens, VCD, DCD, digital Windows, electrical name plate and other CNC chamfering, milling processing, high precision cutting tool size (+ / - 0.01 mm), processing product is no burr and long tool life, high machining efficiency, low cost and high surface finish, etc.
CNC precision processing is the best choice!
Diamond Jewellery Manufacturing Consultation

We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to selection the most suitable tool and machines for your company.

PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

It's used to machine wide range materials such as nonferrous metal,likeAluminum,Aluminum Alloy,Copper,Copper Alloy,Tungsten Carbide,Wood,Reinforced Plastic,Rubber,Graphite,Composite Material,Carbon Fiber,Glass Fiber,Composite Ceramic ect....

1. Customers send detailed inquiry to us by email;

2. We reply with price, specifications, packing, photos, and other details;

3. Both of us agree the price and confirm the details;

4. We write the proforma invoice and send to customers;

5. Customers make deposit;

6. We make mass production samples;

7. We send mass product samples or send photos to customers for approval;

8. Customers confirm the mass production samples;

9. We start mass production.(we have huge stock for most standard end mills);

10. We show ready products' photos or customers inspect on site;

11. Customers make balance payment;

12. Delivery is arranged. Feedback from customers for better work in future.

13. We also make OEM and customized end mills.

Diamond Tool Re-lapping / Polishing/Re-shaping

We supply service for re-lapping and polishing the diamond tools to increase tool life and performance. The tools can be re-polished about 60-70 times.We have more than 150 trained technicians who can offer fast re-polishing service for diamonds tools.For more details,please contact our sales.

Diamond Jewellery Manufacturing Consultation

We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to selection the most suitable tool and machines for your company.

Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

• 1. 10 years experience in carbide roll and cutting tool manufacturing
• 2. From row material to tool produdtion.
• 3. World top level prodution equipment and rich experience team

ATTACTION:

• 1. Make sure work piece and machine are stable and use a precision holder.
• 2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.
• 3. The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
