Payment & Shipping Terms:
|Business Type:||Factory||Overall Length:||40-100mm|
|Flute:||2||Accepted Payment Currency:||USD, CNY|
|Size:||Diameter 1.0mm-20mm Standard And Non-standard||Diameter Of Cutting Edge:||0.2-0.9mm; 1-20mm|
|Cutting Form:||Square,Ball Nose, Corner Radius, Taper Flute, Etc|
2 Flute Nonferrous Boring Cutters,
100mm Length Nonferrous Boring Cutters,
PCD Diamond Gemstone Cutting Tools

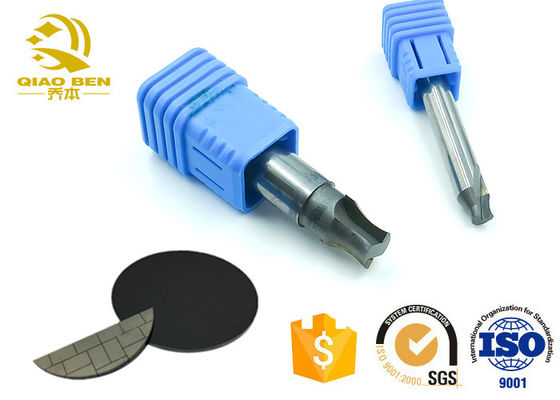

Polycrystalline Diamond Cutting Aluminum Copper Nonferrous Metals Boring Cutters Diamond Gemstone Cutting Tools
Synthetic polycrystalline diamond (PCD) is a polycrystalline material made of diamond powder and solvent polymerized under high temperature and pressure. Its hardness is lower than that of natural diamond (around HV6000). Compared with carbide tools, PCD tools have a hardness that is 3-4 times higher.Wear resistance and life is 50-100 times higher;Cutting speed can be increased 5-20 times;the roughness can reach Ra0.05 m, the brightness is inferior to the natural diamond cutter.
1) The hardness of PCD can reach 8000HV, which is 8~12 times of hard alloy;
2)The thermal conductivity of PCD is 700W/mK, 1.5~9 times of hard alloy, even higher than PCBN and copper, so PCD tool heat transfer quickly;
3)The friction coefficient of PCD is generally only 0.1~0.3(the friction coefficient of cemented carbide is 0.4~1), so PCD tool can significantly reduce the cutting force;
4)PCD's thermal expansion coefficient is only 0.9×10^-6~1.18×10^-6, only equivalent to 1/5 of the hard alloy, so the PCD tool thermal deformation is small, high processing precision;
5)THE affinity between PCD tool and non-ferrous metal and non-metallic materials is very small, in the process of cutting chip is not easy to bond to the tip of the knife to form a chip tumor.
PCD Recommended Cutting Condition
|Work piece||Cutting Speed||Depth of Cut||Feed Rate|
|Aluminum(5~8% SI )||350~1600||0.05~2.50||0.10~0.40|
|Aluminum(8~12% SI )||350~1300||0.05~2.50||0.10~0.40|
|Aluminum(14~18% SI )||160~800||0.05~2.50||0.05~0.25|
|Welcome and congratulations!You found us a professional factory!|
|Size & Design||
1.We not only supply all kinds of high quality solid carbide turning tool ,but
also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw
Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.
2. We have 0.02mm-25mm different diameter and 38mm-150mm length
Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can
produceaccording to your drawing,too.Or the hot deisgned recommend
|4. HS Code reference for you to control everything:8207709000.|
|5. Mixed size and types in one batch available.|
|6. For distributor,we can label your brands on cutters and plastic box.|
1. We accept Mix coated in the same model number, Also one batch with
different coating and types.
|2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!|
|MOQ (Small Qty )||5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.|
We package all our goods carefully.We also accept your packing design OEM
packing it for your control.
|Samples Service||1. Some items free samples for you.|
|2. Free samples but pay shipping cost.|
|3. Lowest shiping fee for you to choose.|
|4. Order to us,sample fee will be refund to you.|
|5. Become our VIP clients,free samples for you!|
|6.OEM samples are hot welcome.|
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
