| Overall Length: | 35-100mm | Diameter Of Cutting Edge: | 0.2-0.9mm; 1-20mm |
|---|---|---|---|
| Size: | Diameter 1.0mm-20mm Standard And Non-standard. | Model Number: | MCD Tools |
| Availability: | Single Crystal Inserts In Stock | Product Name: | CNC Diamond Single Crystal MCD Jewellery Cutting Tools |
| High Light: | Mirror Effect Diamond Milling Cutter,5000mm/ Min Diamond Milling Cutter,60 Degrees Chamfering MCD Tools |
||

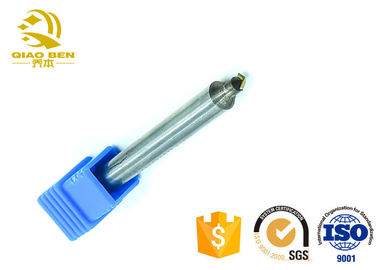

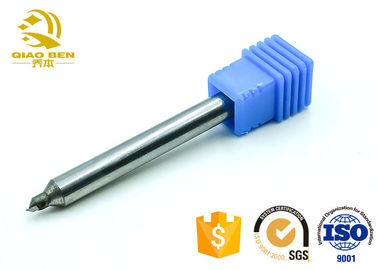

Professional custom high diamond mirror effect 60 degrees chamfering diamond cutter tool various types can be customized
[Tool selection] reasonable tool selection and maintenance, easy to play the tool use efficiency, conducive to the use of the tool times and time, cost control, JOEBEN tools have the following Suggestions:
1, according to the structure of the processing product, material and processing hardness to choose the appropriate tool type.
2. Check the power and rigidity of the machine so that the required tool diameter can be used on the machine.
3. The tool overhang on the main shaft should be as short as possible to reduce the impact of tool axis and workpiece position on the impact load.
4, the use of suitable for the process of tool tooth spacing, so that there are not too many blades in the cutting at the same time and workpiece engagement and cause vibration, on the other hand, in the milling narrow workpiece or milling cavity to keep the blade and workpiece engagement.
5, try to use the feed amount of each blade, so that when the chip thickness can get the cutting position, so as to reduce tool wear.
A straight slotted indexable blade is used to obtain steady cutting power.
6, choose suitable for the width of the workpiece tool diameter.
7. Choose proper main deflection Angle.
8. Place each tool in a regular and orderly manner.
Follow the rules of tool maintenance and repair, and monitor tool wear.
With toughness superhard abrasive machining hard and hard, hard machining the minimal consumption, can be directly below 50 degrees for heat treatment of materials for the rough machining to fine processing, reduce the changeover times, saves the production schedules, stable and reliable, and chip removal is fast, and can be a long time to maintain its sharpness and abrasive tool shape, can not only guarantee the accuracy of the workpiece, and greatly improve the machining efficiency, and solve the problem of environmental pollution.
High hardness diamond material of very fine grain, ensure high precision, effective cutting burr, u-groove design at the blade, large front Angle, effectively reduce cutting resistance, convenient and smooth chip discharge, improve work efficiency.
Welcome to joben knive
| Product name | CNC convex side milling Tool |
| Application Apparatus | CNC equipment |
| Optional Material | Natural diamond,MCD,CVD,PCD,etc. |
| Diamond Size | 0.25mm to 8mm |
| Shank Material | Carbide/stainless steel |
| Shank Thickness | 6mm |
| Rotate speed | 10000~30000r/min |
| Feed velocity | 1500~5000mm/min |
|
Machinable materials |
gold,silver,copper,aluminum,acrylic and other Non-ferrous metal material |
| MCD Recommended Cutting Condition | |||
| Work piece | Cutting Speed | Depth of Cut | Feed Rate |
| (m/min) | (mm) | (mm/rev) | |
| Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
| Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
| Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
| Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
| Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
| High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
| Ceramics | |||
| Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
Business Terms
Accepted Delivery Terms: FOB,CNF,CIF
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, Western Union
Nearest Port: Guangzhou port, Shenzhen port, Shanghai port
Response Rate (last 30 days)
98.6% of buyers who contacted this supplier received a response within 24 hours.
The supplier's average response time of received inquiries is within 12 hours.
Quotation Performance (last 30 days)
The supplier have sent 33 quotes to buyers in last 30 days.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
