Product Details:
Payment & Shipping Terms:
|
| Other Service: | OEM/ODM Or Custom-made | Diameter: | 0.4mm-20mm |
|---|---|---|---|
| Coating: | PVD CVD | Product Name: | Polycrystalline Diamond Cutting Tools PCBN Inserts |
| Processing Type: | Metal | Workpiece: | Steel\ Stainless\ Cast Iron |
| High Light: | polycrystalline diamond cutting tools,polycrystalline diamond cutters |
||

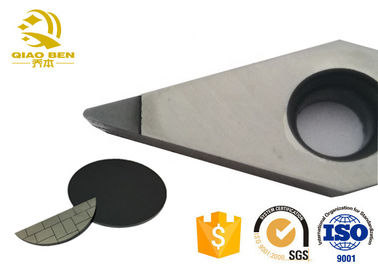

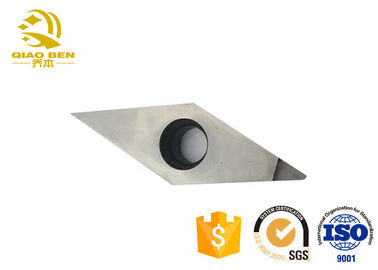

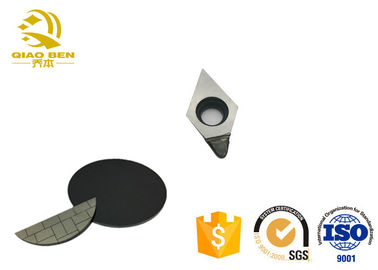

Manufacturer Customized CNC PCD diamond cutters PCD cutters PCD tools PCD end mill Poly Crystal Diamond cutter
overview
The company USES natural diamond materials from South Africa, GE and DEBEERS.It mainly produces three series of products: natural diamond (MCD) series, polycrystalline diamond (PCD) series, cubic boron nitride (PCBN) superhard series cutting tools.Products are widely used in aluminum products highlights, watch parts, gold and silver jewelry, optical parts, motor parts, military, auto parts and other precision and ultra-precision machinery industry
PCD polycrystalline diamond rough polishing knife and ND natural diamond fine (fine) polishing knife are successively mounted on the special polishing knife plate, which can be used to finish the rough and fine polishing of acrylic plate in the diamond polishing machine, edge grinding machine, numerical control center (CNC) or milling machine and other equipment.
The tool is made of natural diamond (PCD) fine polishing tool with good polishing effect and fine grain.The tool grinding process is mature, the chip discharge performance is good, can complete dozens of plate polishing at one time, is currently the organic plate batch polishing, grinding edge efficiency, high yield, highlight the first choice of the tool.
Applicable to gold, silver, copper, aluminum, acrylic, PC, PET...Non-metallic materials such as carving milling processing.Hardware parts;Auto parts;Surface treatment;Craft products;Carved;Copper batch flower;Mobile phone metal button;Phone case;Digital case;Non-metallic high-gloss batch flowers;Watch and watch surface, word nail;Case mirror knife;Nameplate, plate highlight batch flowers;Car CD lines;Colorful car patterns;Car sun pattern;Aluminum products highlights;Electric shell batch flower;Electrical panel;Vehicle panel;Computer peripherals;Transparent computer case;Acrylic polishing;Acrylic (plexiglass) high-gloss (polishing) chamfer;
| PCD Recommended Cutting Condition | |||
| Work piece | Cutting Speed | Depth of Cut | Feed Rate |
| (m/min) | (mm) | (mm/rev) | |
| Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
| Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
| Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
| Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
| Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
| High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
| Ceramics | |||
| Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
