| Overall Length: | 35-100mm | Application: | CNC Process |
|---|---|---|---|
| Diameter: | D4-D20MM | Material: | Diamond Carbide |
| Graininess: | 0.8um | Suitable: | For Aluminum,aluminum Alloy,copper&non-ferrous Materials; |
| Brand Name: | Joeben | Controlling Mode: | CNC Tooling System |
| Flute: | 3Flutes | ||
| High Light: | monocrystalline diamond cutting tools,industrial diamond cutting tools |
||

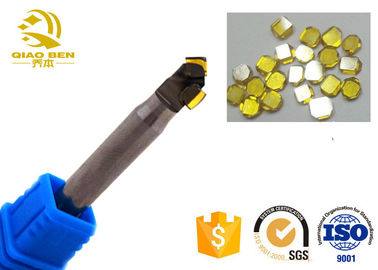

Natural single crystal diamond double edge milling cutter processing mobile phone frame notebook aluminum frame
Suitable for gold, silver, copper, aluminum, acrylic, PC, PET...Such non - metallic materials carving milling processing.Hardware parts;Auto parts;Surface treatment;Craft products;Carved;Copper batch flower;Mobile phone metal buttons;Mobile phone case;Digital enclosure;Non-metallic highlights;Clock surface, letter nail;Mirror knife in case;Nameplate, label high light batch flowers;Car CD lines;Car colorful patterns;Sun pattern;Aluminum products highlights;Electrical shell batch flower;Electrical panel;Vehicle panel;Computer peripherals;Computer transparent case;Acrylic polishing;Acrylic (plexiglass) highlight (polishing) chamfering;The lens;Windows;Motor commutator fine car, etc.
1) must use the appropriate size of the jacket, because of serious wear or not enough circle and inner hole with taper of the jacket, can not provide enough clamping force, resulting in vibration or twist the handle and fly off.
2) when uneven contact marks or grooves are found on the tool handle after the tool is clamped, it indicates slippage or deformation of the inner hole of the fixture.The jacket should be replaced immediately.The tool handle and jacket must be tightly tightened to prevent the handle from breaking or accidents.
3) keep the tool clean after work, using standard industrial solvents to remove dirt stuck to the tool.
4) do not arbitrarily from the grinding tool and change the tool type, because every grinding process needs professional grinding equipment and professional grinding skills.Otherwise, it is easy to cause blade fracture and cause accidents.
1.Fully enables running at rough machining parameters, resulting in finish surface quality.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.The coating provides longer tool-life or increased cutting-values.
4.Suitable for all types of steel or metal.
Original raw micro grain material, high hardness and T.R.S
a, Material: tungsten carbide
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45/55/60/65
d, Grain size: 0.2-0.6μm
e, Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Size: Diameter 1.0mm-20mm standard and non-standard.
Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.
Type of flute: 2/3/4
| MCD Recommended Cutting Condition | |||
| Work piece | Cutting Speed | Depth of Cut | Feed Rate |
| (m/min) | (mm) | (mm/rev) | |
| Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
| Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
| Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
| Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
| Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
| High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
| Ceramics | |||
| Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
| Welcome and congratulations!You found us a professional factory! | |
| Size & Design |
1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
|
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. |
|
|
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
|
| 4. HS Code reference for you to control everything:8207709000. | |
| 5. Mixed size and types in one batch available. | |
| 6. For distributor,we can label your brands on cutters and plastic box. | |
| Plating |
1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
| 2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
| MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
|
OEM One-Step Packing |
We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
| Samples Service | 1. Some items free samples for you. |
| 2. Free samples but pay shipping cost. | |
| 3. Lowest shiping fee for you to choose. | |
| 4. Order to us,sample fee will be refund to you. | |
| 5. Become our VIP clients,free samples for you! | |
| 6.OEM samples are hot welcome. | |
Business Terms
Accepted Delivery Terms: FOB,CNF,CIF
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, Western Union
Nearest Port: Guangzhou port, Shenzhen port, Shanghai port
Response Rate (last 30 days)
98.6% of buyers who contacted this supplier received a response within 24 hours.
The supplier's average response time of received inquiries is within 12 hours.
Quotation Performance (last 30 days)
The supplier have sent 33 quotes to buyers in last 30 days.
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
