Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um

Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um
Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um

Large Image :  Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: MCDMC36
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Overall Length: 35-100mm Application: CNC Process
Type: End Mill Diameter: D4-D20MM
Material: Diamond Carbide Supply Ability: 100000 Piece/Pieces Per Month
Graininess: 0.8um Suitable: For Aluminum,aluminum Alloy,copper&non-ferrous Materials;
High Light:

monocrystalline diamond cutting tools

,

industrial diamond cutting tools

Single crystal diamond cutter grain turning milling aluminum parts such as copper silver support customized various angle

Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um 0



    Suitable for processing non-ferrous metals (copper, aluminum, zinc, titanium, etc.), as well as the end face and outer part of organic plate, high-precision arc of knife tip and experienced edge grinding process.

When mounted on a CNC machine with good stability, the machined surface of the plate can produce a mirror effect, and the smoothness can reach RA0.2 or above

   Our diamond cutting tools not only wear resistance, and has good chip removal performance, is to achieve high efficiency, high brightness, high finish precision machining preferred

Our diamond cutting tools not only wear resistance, and has good chip removal performance, is to achieve high efficiency, high brightness, high finish precision machining preferred.

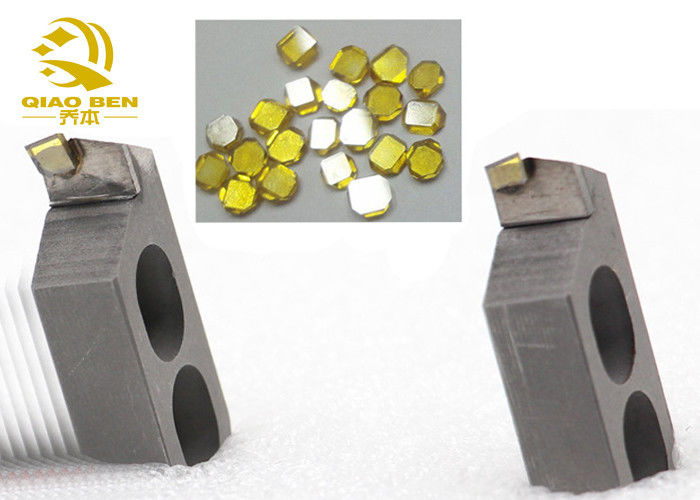

  Select high quality natural diamond, use special welding process to weld natural diamond single crystal on the tool bar, through special geometric Angle design and blade grinding technology.According to customer requirements for processing into a variety of angles, radians, mainly used for aspheric surface and free optical surface processing, wiener processing, ultra-precision processing, such as: used for turning optical plexiglass, high finish non-ferrous metals, ceramics and so on.



MCD Recommended Cutting Condition
Work piece Cutting Speed Depth of Cut Feed Rate
(m/min) (mm) (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbid 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Ceramics
Wood 1000-2500 0.2~5.0 010~0.50






Single Crystal Natural &synthetic diamond cutting tools,inserts,drill Bits, Milling Cutter

Product Description

1. This turning insert with natural diamond is widely used in ultra precise mirror turning, milling and cutting, etc.
2. It can be specially designed and produced for customers' need.
3. The raw materials give it strong hardness and high performance
4. You can inquire us for the specifications.



Material: Single-Crystal Diamond (Mono-crystalline) &synthetic diamond


Application: Especially for Acrylic chamfer,dia-cutting glass lens, Acrylic, CP board ,etc



Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um 1

Business Terms

Accepted Delivery Terms: FOB,CNF,CIF

Accepted Payment Currency: USD, CNY

Accepted Payment Type: T/T, Western Union

Nearest Port: Guangzhou port, Shenzhen port, Shanghai port

Response Rate (last 30 days)



98.6% of buyers who contacted this supplier received a response within 24 hours.

Average Response Time (7 days)

The supplier's average response time of received inquiries is within 12 hours.



Quotation Performance (last 30 days)

The supplier have sent 33 quotes to buyers in last 30 days.

Aluminum Parts Monocrystal Diamond Cutting Tools Grain Turning Milling 0.8um 2



Q:Are you Manufacture?

A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?

A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

Q: Can you produce non-standard tools?

A: Yes, we can produce non-standard tools as per your drawing.

We also can design tools for you as per your usage requirement

Q:What is your advantages?

A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.



Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
