ShenZhen Joeben Diamond Cutting Tools Co,.Ltd
Home ProductsPolycrystalline Diamond Cutting Tools

ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy

China ShenZhen Joeben Diamond Cutting Tools Co,.Ltd certification
China ShenZhen Joeben Diamond Cutting Tools Co,.Ltd certification
Low price and good quality,this helped me a lot.Timely booking,satisfactory service and full support.Thank you very much...Im very happy....

—— Mr ruddy

I'm happy to work with you in last years,pretty nice support on business and a special personal.Hope everything goes great next year in your job and family.

—— Arturo Mimbela from USA

Excellent quality and durability as always.Greattach products,awesome prices!

—— Jody willock

AS discussed please find attached my supplier for diamond tooling they make a very high quality product are very professional and good to work with.I have a small amout of there bits at my workshop next time your around if you would like to look at them.They can custom make most bits as well at very reasonable prices.

—— Phillip Charles

I'm Online Chat Now

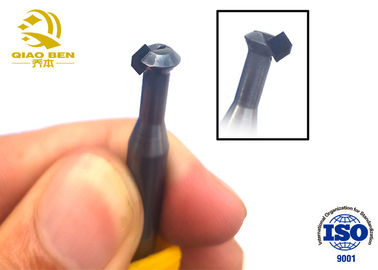

ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy

ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy
ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy

Large Image :  ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: PCDFCT37
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Business Type: Factory Diameter: 4mm-20mm
Overall Length: 50-150mm Suitable For: Aluminum Alloy
Usage: General High Speed Cutting Controlling Mode: CNC Tooling System
Machine Type: Milling Machine Keywords: Diamond Blade For Granite
High Light:

polycrystalline diamond cutting tools

,

polycrystalline diamond cutters

Diamond cutter PCD one flute diamond cutting tools pcd tool/cutting tool PCD end millISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy 0

overview

The company's products are made of natural diamond materials in South Africa, super hard materials produced by GE in the United States and DEBEERS in the United Kingdom.The main production of three series of products: natural diamond (MCD) series, polycrystalline diamond (PCD) series, cubic boron nitride (PCBN) super hard series tools.The products are widely used in aluminum products, watches and clocks accessories, gold and silver jewelry, optical parts, motor parts, military, auto parts and other precision and ultra-precision machinery industry.

1) artificial polycrystalline diamond (PCD) is a polycrystalline material synthesized by the polymerization of diamond powder and solvent under high temperature and pressure. Its hardness is lower than that of natural diamond (HV6000).Wear resistance and life is 50-100 times higher;Cutting speed can be increased 5-20 times;The roughness can reach up to Ra0.05 micron, and the brightness is inferior to that of natural diamond knife

2) the hardness of natural diamond (diamond) is hv9,000-10,000, which is the hardest material in nature.The tool can keep the size stable for a long time in cutting, so it has a long service life.The tool made of natural diamond has no gap in its edge arc under the microscope of 400 times, suitable for processing gold, silver, copper, aluminum (aluminum alloy), zinc (zinc alloy), acrylic (plexiglass) and other materials.The roughness can reach Ra(0.01-0.025) mum.High cutting efficiency and stable machining accuracy.

To mobile phone shell, panel, mobile phone lens, digital lenses, camera lenses, MP3 / MP4 lens, VCD, DCD, digital Windows, electrical name plate and other CNC chamfering, milling processing, high precision cutting tool size (+ / - 0.01 mm), processing product is no burr and long tool life, high machining efficiency, low cost and high surface finish, etc.

PCD Recommended Cutting Condition
Work piece Cutting Speed Depth of Cut Feed Rate
(m/min) (mm) (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbid 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Ceramics
Wood 1000-2500 0.2~5.0 010~0.50

 ISO Diamond Cutter Polycrystalline Diamond Pcd Tools Suitable For Aluminum Alloy 1


Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
