Product Details:
Payment & Shipping Terms:
|
| Overall Length: | 50-10mm | Diameter: | D2-20MM |
|---|---|---|---|
| Suitable For: | Carbon Steel | Precision: | High Precision |
| Processing Type: | Metal Cutting Tools | OEM&ODM: | Available |
| High Light: | cnc router end mills,cnc carbide tools |
||

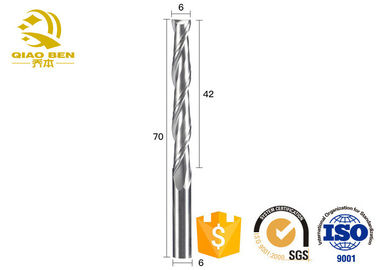

CNC End Mill Cutter High Demand Products Cnc Alloy 2 quot Hand Face Mill Cutter
overview
German cobalt collar K44, cobalt 12%, tungsten 88%, tungsten carbide sintered grain size of 0.4 m and cobalt collar K55, cobalt 10%, tungsten 90%, tungsten carbide sintered grain size of 0.2 m tungsten steel bar as raw materials.Scientific and strict groove design, edge Angle grinding process, so that the tool cutting edge strength, rigidity and anti-wear properties are combined.Large capacity groove through precision grinding and polishing treatment, smooth chip removal, not easy to produce chip tumor.
New blade shape, smooth and sharp surface, edge grinding with fine grinding wheel, no lack of corrosion on the coating, easy surface coating processing, cutting tool time to be extended.
High toughness combined with high hardness, both high wear resistance, high thermal hardness, high thermal stability, strong adhesion and smooth surface, reduce friction.With German ZOLLER tool testing instrument and system, the products adopt hundreds of tests, control the same parameters of each type of tool and each batch of production, and control the qualified tools flowing to the market.
specification:
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
| EDP No. | Dia(mm) | Angle | Flute Length(mm) | Flutes | Shank Dia(mm) | OverLength(mm) |
| 2207010605 | 0.4 | 90 | 8 | 2 | 4 | 45 |
| 2207010229 | 0.5 | 127 | 0.87 | 2 | 4 | 50 |
| 2207010160 | 0.5 | 90 | 5 | 2 | 4 | 50 |
| 2207010342 | 1 | 71 | 9.94 | 2 | 4 | 50 |
| 2207010089 | 1 | 90 | 5.00 | 2 | 4 | 50 |
| 2207010085 | 1.2 | 120 | 5 | 2 | 4 | 50 |
| 2207010606 | 1.2 | 90 | 5.0 | 2 | 4 | 50 |
F-ED-001 end mill Features:
1. Suitable for steels & cast iron (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Our advantage:
