Product Details:
Payment & Shipping Terms:
|
Overall Length: | 50-10mm | Type: | End Mill |
---|---|---|---|
Diameter: | 1~20mm | Hrc: | 45/55/60/65 |
Material: | Tungsten Cobalt Alloy | Coating: | TiAIN,AlTiN,Other |
Overall Length: | 50-150mm | Shank: | Straight Shank |
High Light: | cnc carbide tools,cnc milling cutters |

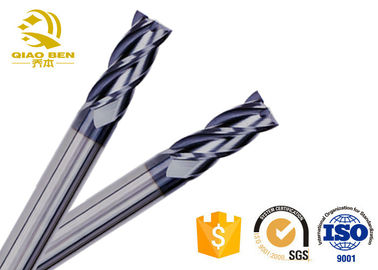

Germany Machine Cheap Price 2 Flute 4 Flute HRC45 HRC50 HRC55 HRC63 square flat cnc cutting tool tungsten Solid Carbide
overview
The triangular bevel groove design of the blade has a larger cutting capacity than that of the previous one, achieving unprecedented high feed processing, improving the efficiency by 200%. The precise chamfer contour is round, effectively avoiding the collision of the product, and making the product blade fully play its role.The double-edged belt can effectively remove burrs, and the machined holes have good surface finish and small tolerance range, which can be used instead of some rough knives.
Screw design, large capacity smooth chip discharge, prevent sticking knife, reduce heat, hard alloy compressive strength, high hardness, good wear resistance, round smooth handle with precise chamfer clamping easier, complete specifications for a variety of aperture requirements, support customized.
1.We not only supply all kinds of high quality solid carbide End Mills ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Inserts.
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose.
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you.
4. HS Code reference for you to control everything
5. Mixed size and types in one batch available.
Tungsten Carbide Flat Endmill, Square End Mill Cutting Tools For Metal(Standard Type) |
||||||||||||||||||||||||||
Machining Range:AL5052,AL6063,AL6061,AL7075 | ||||||||||||||||||||||||||
EDP NO. | Diameter | Flute Length | Flute | O.AL | Shank Dia | |||||||||||||||||||||
2102010581 | 1.0 | 3 | 4 | 50 | 4 | |||||||||||||||||||||
2102010756 | 1.5 | 4.5 | 4 | 50 | 4 | |||||||||||||||||||||
2102010580 | 2.0 | 6 |
4 |
50 | 4 | |||||||||||||||||||||
2113010429 | 2.5 | 7.5 | 4 | 50 | 4 | |||||||||||||||||||||
2102010384 | 3.0 | 9 | 4 | 50 | 4 | |||||||||||||||||||||
2102010595 | 4.0 | 12 | 4 | 50 | 4 | |||||||||||||||||||||
2113010430 | 5.0 | 15 | 4 | 50 | 6 | |||||||||||||||||||||
2113010431 | 6.0 | 18 | 4 | 50 | 6 | |||||||||||||||||||||
2113010432 | 8.0 | 24 | 4 | 60 | 8 | |||||||||||||||||||||
2113010433 | 10.0 | 30 | 4 | 75 | 10 | |||||||||||||||||||||
2113010434 | 12.0 | 36 | 4 | 75 | 12 |
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
