Overall Length: | 50-10mm | Diameter: | D2-20MM |
---|---|---|---|
Application: | CNC Process | Processing Type: | Metal Cutting Tools |
Suitable For: | Carbon Steel | Flute: | 3Flutes |
High Light: | corner rounding milling cutters,bull nose milling cutter |

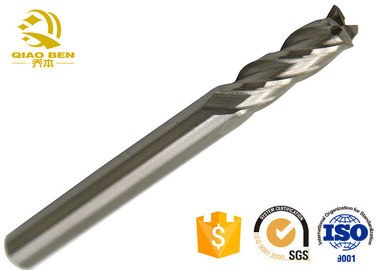

CNC End Mill Cutter Factory Direct Supply 0.5Mm 3Mm With Radius Groove Endmill
overview
Unique chip groove shape, even in the groove and cavity machining can show excellent performance, sharp cutting edge and large screw Angle design effectively prevent the generation of chip, the whole cutting edge seismic design, can inhibit the process of the chatter vibration, improve the quality of processing surface, in order to get the best cutting surface and tool life.
Suitable for hrc30-52 metal workpiece, using general good altin coating, workpiece surface finish is better, the processing material versatility is more extensive, it is recommended to use high rigidity, high precision tool handle and cylinder clip, comprehensive run-out control within 0.005mm.Smooth chip removal design, enhance damage resistance, improve the surface finish.
Item | AlTiN | TiAIN | TiSiN | nACo |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
EDP No. | Dia(mm) | Angle | Flute Length(mm) | Flutes | Shank Dia(mm) | OverLength(mm) |
2207010605 | 0.4 | 90 | 8 | 2 | 4 | 45 |
2207010229 | 0.5 | 127 | 0.87 | 2 | 4 | 50 |
2207010160 | 0.5 | 90 | 5 | 2 | 4 | 50 |
2207010342 | 1 | 71 | 9.94 | 2 | 4 | 50 |
2207010089 | 1 | 90 | 5.00 | 2 | 4 | 50 |
2207010085 | 1.2 | 120 | 5 | 2 | 4 | 50 |
2207010606 | 1.2 | 90 | 5.0 | 2 | 4 | 50 |
Selects fine grain quality bar, processing imported five axis tool grinding machine, cutting tool inspection standard strictly, to ensure the consistency of the cutter size and beating altin nano coating, resistant to high temperature wear resistance, hardness and toughness of the notification with coating, suitable for 63 ° hard steel, hardened steel, aluminum, copper materials, under the condition of the bits ensure the space, the big core diameter design, greatly enhance the tool rigidity and vibration resistance, reduce the cutting knife, prolong service life.Through passivation technology, the tool adhesion particles are completely removed, passivation of the blade, processing of high hardness materials is more easy to use, anti-break blade, prolong the service life of the tool.
F-ED-001 end mill Features:
1. Suitable for steels & cast iron (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
