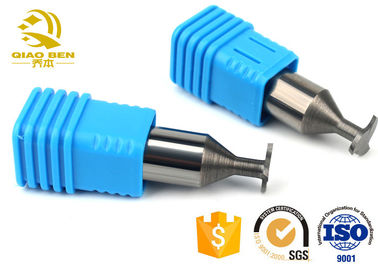

60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM

60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM
60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM 60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM 60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM 60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM

Large Image :  60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: TSC04
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, D/A,
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Overall Length: 50-10mm
Diameter: D1-20MM Hardness: HRC45-65
High Light:

tee slot cutter

,

t slot milling cutting tools

T-Slot End Mill Cutter professional custom - made molding cutterCNC cutter tungsten steel T cutter 60 degrees

60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM 0

   T-Slot End Mill Cutter features:



   1,【 tungsten steel material 】 German cobalt collar K44, cobalt 12%, tungsten 88%, tungsten carbide burnt to 0.4m microns and cobalt collar K55, cobalt 10%, tungsten 90%, tungsten carbide burnt to 0.2m microns tungsten steel bar as raw materials.



   2,  [grinding groove] scientific and strict groove design, edge Angle using grinding technology, so that the cutting edge strength, rigidity and abrasion resistance are combined.Large capacity groove through precision grinding and polishing treatment, smooth chip removal, not easy to produce chip tumor.



   3, [fine grinding edge] adopts the new blade shape, the surface is smooth and sharp, the edge is grinded with fine sand wheel, there is no lack of corrosion on the coating, it is convenient for surface coating processing, the cutting time of the tool can be extended.



   4, [new coating] CemeCon new coating is selected from Germany. The coating particles are fine, and the combination of high toughness and high hardness has the advantages of high abrasion resistance, high thermal hardness, high thermal stability, strong adhesion and surface smoothness to reduce friction.



  5, [strict quality] German ZOLLER tool testing instruments and systems are adopted. Hundreds of tests are used to control the same parameters of each batch of production of each type of tool and the qualified tools flowing to the market.



   6, [tool selection] reasonable selection and maintenance of tools, easy to play the efficiency of tool use, conducive to the number and length of tool use, cost control,



shenbing tools have the following Suggestions:

1, according to the structure of the processing products, materials and hardness of the appropriate tool type.

2, check the power and stiffness of the machine tool, so that the required tool diameter can be used on the machine tool.

3. The overhang of the tool on the spindle should be as short as possible to reduce the impact load of the tool axis and the position of the workpiece.

4, the use of suitable for the process of tool tooth spacing, so that there is not too much cutting blade and the workpiece at the same time and cause vibration, on the other hand, in the milling narrow workpiece or milling cavity to maintain the blade and the workpiece mesh.

5, try to use the feed per blade, so as to get the cutting position when the chip thickness, so as to reduce tool wear.The front Angle grooved indexable blade is used to obtain smooth cutting power.

6, choose suitable for the width of the workpiece tool diameter.

7, choose the appropriate main Angle.

8. Place each tool in an orderly manner.

9. Follow the rules of tool maintenance and repair, and monitor tool wear.

Super raw material

HRC45 HRC55 HRC60 HRC65
YG10X YG10.2 &WF25(Taiwan) K44 & K40 (German) H10F (Sweden)

Grain Size:0.7um
Co:10 %
Flexural strength:

3320N/mm2

Grain Size:0.6um
Co:10 %
Flexural strength:

4000N/mm2

Grain Size:0.5um
Co:12 %
Flexural strength:

4300N/mm2

Grain Size:0.5um
Co:10 %
Flexural strength:

4300N/mm2



60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM 1

1. Physical Properties:overview

a. Hardness greater than or equal to 92.6 HRA;

b. Density greater than or equal to 14.4g/cm³;

c. TRS greater than or equal to 3800 N/mm²;

d. Free of ETA phase condition;

e. No contamination by other materials;

f. Porosity = A02/ B00 / C00 ;

g. Uniform and consistent grain size. No grain size can be larger than specified.

h. Chromium carbide grain growth inhibitor only.

2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;

3. It's proposed cutting less than 65HRC;


Product composition:Tungsten steelF-ED-001 end mill Features

1. Suitable for aluminum alloy (≤ 65 HRC)

2. High performance alcr series coating,high temperature resistance and high wear resistance.

3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.

60 Degree T Slot End Mill Cutter T Slot Milling Cutting Tools D1-20 MM 2



Q:Are you Manufacture?

A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?

A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

Q: Can you produce non-standard tools?

A: Yes, we can produce non-standard tools as per your drawing.

We also can design tools for you as per your usage requirement

Q:What is your advantages?

A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.



Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
