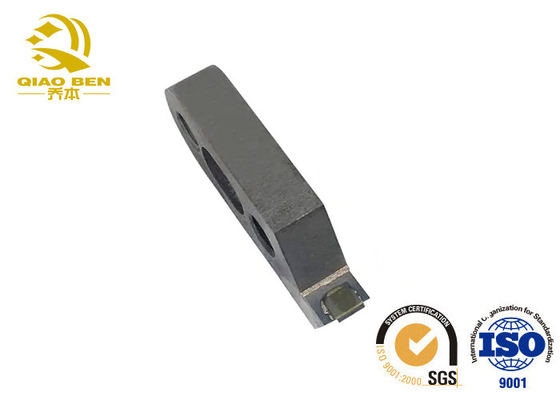

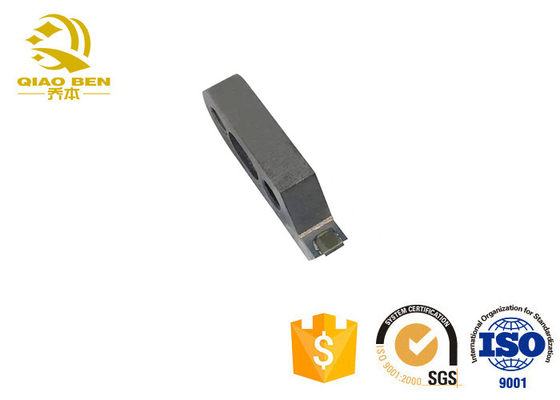

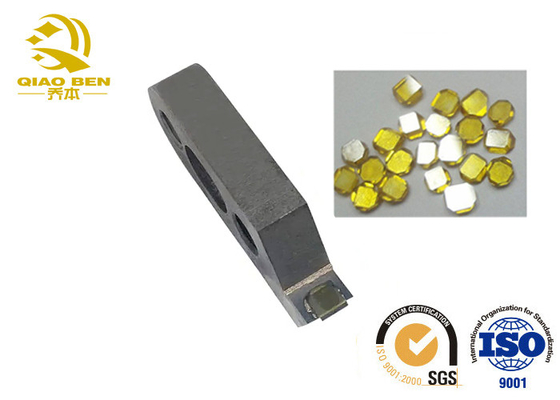

Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert

Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert
Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert

Large Image :  Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: PMCT1296
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Suitable For: Gold/Silve/Aluminum/Brass/Acrylic/Plastic/PVC/MDF OEM: Acceptable
DELIVERY TIME: 3-7 Working Days Transport: TNT\DHL\ Fedex\ EMS\ UPS
Application: Contact Lens, Glasses, Metal Mirror Product Name: PCD Diamond Milling Cutters
Machining Model: Rough/Semi-finishing/Finishing Sample: Non-standard Customization
Usage: Aluminum, Copper, Bronze, Brass, Green Tungsten Carbide
High Light:

customize pcd diamond inserts


customize polycrystalline diamond inserts


oem pcd turning inserts

customize CBN PCD diamond insert for cutter aluminum cnc machine turning PCD PCBN insert

Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert 0

1. Look at the processing process: if the processing process, continuous regular sparks, indicating that the tool has been worn, according to the average life of the tool
Change knives in time.
2. Look at the color of the iron filings: the color of the iron filings changes, indicating that the processing temperature has changed, and this time the tool has begun to wear.
3 Look at the shape of the iron filings: zigzag on both sides of the iron, abnormal curling of the iron filings, and the iron filings become finer, which are all tools
The judgment basis of damage.
4. Look at the surface brightness change of the workpiece: the brightness continuously reduces the tool has been worn.
5 Processing vibration sound changes: tool wear will cut the resistance is too large, pay attention to avoid "knife", resulting in workpiece scrap
6. Observe the change of machine load data: If there is a significant incremental change, it indicates that the tool has been worn.
7. Observe the burr change on the edge of the workpiece: when the tool is cut out, the workpiece has a serious burr and the phase roughness decreases.
8. Observe the size change of the workpiece: obvious phenomena such as the size change of the workpiece are also the criteria for tool wear.
9. Tool life table (based on the number of processed workpieces): some high-end equipment manufacturing or single product mass production enterprises use it to guide production, this method is suitable for processing expensive aerospace, steam turbines, automotive key components such as engines and other production enterprises.

Cutting speed
Characteristics of polycrystalline cubic boron nitride PCBN:
The best tool material known for both high hardness and high temperature resistance.
It goes through high temperature and high pressure twice in the manufacturing process
1. Under high temperature and pressure, hexagonal boron nitride (HBN) is converted into cubic boron nitride (CBN).
2. Then cubic boron nitride micro-nanocrystal powder and binder were synthesized into polycrystalline cubic boron nitride (PCBN) under high temperature and pressure.
PCBN is chemically inert and will not react with ferrous metals at high temperatures
1. Used for processing cast iron
2. Used for processing high hardness, high wear resistant alloy cast iron and casting high speed steel
3. Used for processing hardened steel
4. Used for processing difficult materials, such as: superalloy, tungsten carbide, etc.
Processing materials: For ferrous metals with extremely stable chemical properties, hardened steel (45-60HRC), bearing steel (60-62HRC) high-speed steel (>62HRC) tool steel (57-60HRC), chilled cast iron out and fine turning, can be realized to replace grinding, greatly improve processing efficiency.
Processing life: fracture toughness, high hardness and toughness, good wear resistance and strong collapse resistance.

MCD Recommended Cutting Condition
Work piece Cutting Speed Depth of Cut Feed Rate
(m/min) (mm) (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbid 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Wood 1000-2500 0.2~5.0 010~0.50


Grade Work-piece material Hardness V(m/min) F(mm/rev) Ap(mm)
CBN Gray cast iron HB170-300 500-1500 0.1-0.4 0.1-1.5
Nodular cast iron HB240-300 200-400 0.1-0.4 0.1-0.5
Alloyed cast iron HB240-300 150-300 0.05-0.4 0.1-0.5
Fe-based P/M HRC45-50 50-150 0.05-0.4 0.05-0.5
Hardened steels HRC55-65 80-200 0.05-0.2 0.05-0.2
Heat-resistant alloys   50-200 0.05-0.2 0.05-0.2
PCD AI and AI alloys   200-3000 0.05-0.5 0.05-1.0
Non-mentals Cemented   100-500 0.05-0.5 0.05-1.0
Carbide   20-30 0.05-0.2 0.05-0.2
Product Name PCD/CBN/MCD/ND Inserts High Quality Diamond Inserts
Suitable Material Gold/Silve/Aluminum/Brass/Acrylic/Plastic/PVC/MDF/Steel
Features No burs, high precision, good surface effects and high cutting efficiency and long work time
Advantages Factory direct sales, short delivery time; non-standard customization, quality assurance; attentive service, customer first
Brand Joeben


Material CBN, PCBN, Carbide
OEM/ODM Acceptalbe
Manufacture Yes
No of Edge 4
Cutting Material Hardened steel, cast iron, HSS roll, sintered metal, high hardness mat
Package 1pc/5pcs/10pcs per plastic box
MOQ 2pcs
Delivery Time 7-10 days
Advantage Durable, Excellent surface finish, Reduce the cost
  • Suitable for workpiece Carbon Steel, Aluminium alloy, Cuprum, Acrylic
  • HRC:  45/55/60/65 HRC ,After quench, for processing large hardness of 150°
  • Other Service:  OEM/ODM or custom-made
  • Effect:   cut aluminum parts in large area, saving time and labor
  • Machining parts:Outer circle and inner circle of turning parts

Customize CBN PCD Diamond Insert For Cutter Aluminum Cnc Machine Turning PCD PCBN Insert 1
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team


  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
