Product Details:
Payment & Shipping Terms:
|
| Suitable For: | Gold/Silve/Aluminum/Brass/Acrylic/Plastic/PVC/MDF | OEM: | Acceptable |
|---|---|---|---|
| DELIVERY TIME: | 3-7 Working Days | Transport: | TNT\DHL\ Fedex\ EMS\ UPS |
| Application: | Contact Lens, Glasses, Metal Mirror | Product Name: | PCD Diamond Milling Cutters |
| Machining Model: | Rough/Semi-finishing/Finishing | Sample: | Non-standard Customization |
| Usage: | CNC Turning And Milling | ||
| High Light: | pmct pcd inserts for aluminum,pmct pcd lathe inserts,pmct insert pcd |
||
overview
Cutting speed
Characteristics of polycrystalline cubic boron nitride PCBN:
The best tool material known for both high hardness and high temperature resistance.
It goes through high temperature and high pressure twice in the manufacturing process
1. Under high temperature and pressure, hexagonal boron nitride (HBN) is converted into cubic boron nitride (CBN).
2. Then cubic boron nitride micro-nanocrystal powder and binder were synthesized into polycrystalline cubic boron nitride (PCBN) under high temperature and pressure.
PCBN is chemically inert and will not react with ferrous metals at high temperatures
1. Used for processing cast iron
2. Used for processing high hardness, high wear resistant alloy cast iron and casting high speed steel
3. Used for processing hardened steel
4. Used for processing difficult materials, such as: superalloy, tungsten carbide, etc.
Processing materials: For ferrous metals with extremely stable chemical properties, hardened steel (45-60HRC), bearing steel (60-62HRC) high-speed steel (>62HRC) tool steel (57-60HRC), chilled cast iron out and fine turning, can be realized to replace grinding, greatly improve processing efficiency.
Processing life: fracture toughness, high hardness and toughness, good wear resistance and strong collapse resistance.
| MCD Recommended Cutting Condition | |||
| Work piece | Cutting Speed | Depth of Cut | Feed Rate |
| (m/min) | (mm) | (mm/rev) | |
| Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
| Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
| Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
| Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
| Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
| High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
| Ceramics | |||
| Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
| Grade | Work-piece material | Hardness | V(m/min) | F(mm/rev) | Ap(mm) |
| CBN | Gray cast iron | HB170-300 | 500-1500 | 0.1-0.4 | 0.1-1.5 |
| Nodular cast iron | HB240-300 | 200-400 | 0.1-0.4 | 0.1-0.5 | |
| Alloyed cast iron | HB240-300 | 150-300 | 0.05-0.4 | 0.1-0.5 | |
| Fe-based P/M | HRC45-50 | 50-150 | 0.05-0.4 | 0.05-0.5 | |
| Hardened steels | HRC55-65 | 80-200 | 0.05-0.2 | 0.05-0.2 | |
| Heat-resistant alloys | 50-200 | 0.05-0.2 | 0.05-0.2 | ||
| PCD | AI and AI alloys | 200-3000 | 0.05-0.5 | 0.05-1.0 | |
| Non-mentals Cemented | 100-500 | 0.05-0.5 | 0.05-1.0 | ||
| Carbide | 20-30 | 0.05-0.2 | 0.05-0.2 |

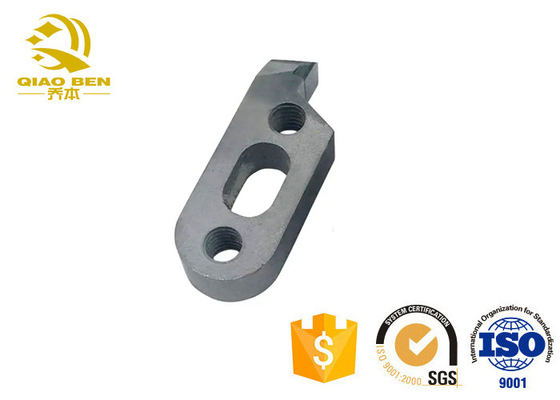

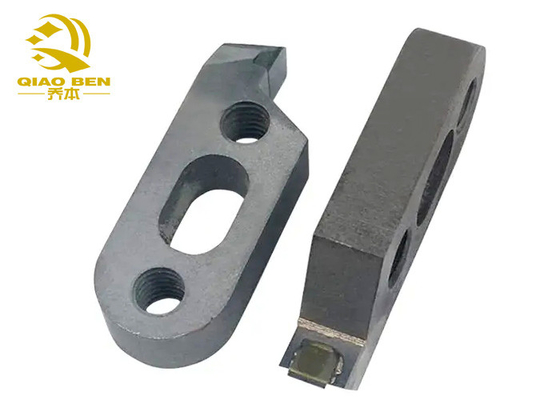

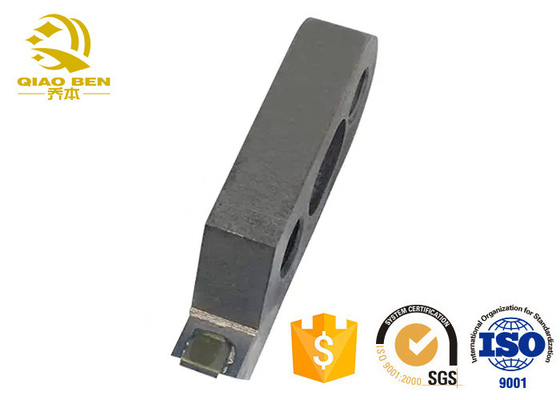

| Product Name | PCD/CBN/MCD/ND Inserts High Quality Diamond Inserts |
| Suitable Material | Gold/Silve/Aluminum/Brass/Acrylic/Plastic/PVC/MDF/Steel |
| Type | PCD/ MCD/ ND/ CVD/ CBN |
| Features | No burs, high precision, good surface effects and high cutting efficiency and long work time |
| Advantages | Factory direct sales, short delivery time; non-standard customization, quality assurance; attentive service, customer first |
| Brand | Joeben |
| Material | CBN, PCBN, Carbide |
| OEM/ODM | Acceptalbe |
| Manufacture | Yes |
| No of Edge | 4 |
| Cutting Material | Hardened steel, cast iron, HSS roll, sintered metal, high hardness mat |
| Package | 1pc/5pcs/10pcs per plastic box |
| MOQ | 2pcs |
| Delivery Time | 7-10 days |
| Advantage | Durable, Excellent surface finish, Reduce the cost |
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
