Payment & Shipping Terms:
|OEM:||Acceptable||DELIVERY TIME:||3-7 Working Days|
|Tip Diameter:||D1,D2,D3,D4,D5,D6,D8,D10,D12||Transport:||TNT\DHL\ Fedex\ EMS\ UPS|
|Packing:||1ps/ Plastic Box||MOQ:||1 PCS|

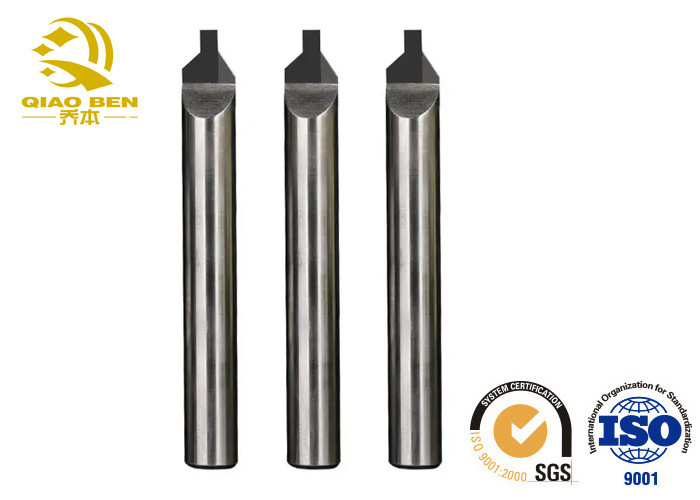

Aluminum Alloy PCD Milling Cutter,
High Gloss Cutting PCD Milling Cutter,
20MM PCD Milling Cutter
PCD diamond tool: Natural diamond is expensive, diamond is widely used in cutting or polycrystalline diamond (PCD), since the early 1970s, the use of high temperature and high pressure synthesis technology prepared polycrystalline diamond (Polycrystauine diamond, referred to as PCD blade after the successful development of In many cases, natural diamond tools have been replaced by artificial polycrystalline diamond. PCD raw materials are abundant, and its price is only one-tenth to one-tenth of natural diamond. PCD tool can not grind out extremely sharp edge, the surface quality of the workpiece processing is not as good as the natural for non-ferrous metals and non-metallic fine cutting, it is difficult to achieve ultra-precision mirror cutting.
The choice of tool material has great influence on tool life, machining efficiency, machining quality and machining cost. Tool cutting to withstand high pressure, high temperature, friction, impact and vibration and other effects. Therefore, the tool material should have the following basic properties:
(1) Hardness and wear resistance. The hardness of the tool material must be higher than that of the workpiece material, and it is generally required to be above 60HRC. The higher the hardness of the tool material, the better the wear resistance.
(2) Strength and toughness. The tool material should have high strength and toughness in order to withstand the cutting force, impact and vibration, to prevent the brittle fracture and blade collapse of the tool.
(3) Heat resistance. The tool material has good heat resistance, can withstand high cutting temperature, and has good oxidation resistance.
(4) Process performance and economy. Tool material should have good forging performance, heat treatment performance, welding performance; Grinding processing performance, and the pursuit of high performance-price ratio.
Application scope of natural diamond milling cutter: hardware parts; Auto parts; Surface treatment; Craft products; Fine carving; Copper batch flower; Mobile phone metal keys; Mobile phone case; Digital shell; Metal highlight batch flower; Watch surface, word nail; The case reflects the knife; Nameplate, sign highlight batch flower; Car CD pattern; Car colorful pattern; Car sun pattern; Aluminum products highlight; Electrical shell batch flower; Electrical panel; Vehicle panel; Computer peripherals; Transparent computer case; Acrylic polishing; Compression (plexiglass) highlight (polishing) chamfer; A lens; Windows; Motor rectifier fine car, etc. Mainly used for all kinds of metals, gold, silver, copper, aluminum alloy, zinc alloy and non-metallic materials, acrylic, PVC, PC, plastic and other materials of high light chamfering and straight edge mark light cutting, cutting surface bright mirror highlight effect, long service life. According to the requirements of customized tool tip diamond width, Angle, material, tool bar size. R Angle arc can be controlled in 0.02-0.05, chamfering knife commonly used specifications in 45°, 75°, 78°, diamond width is 3.0* 3.0mm.
Processing features: strong stability, specular highlight, smooth chip, reduce cutting resistance, improve processing efficiency and tool life.
|CBN||Gray cast iron||HB170-300||500-1500||0.1-0.4||0.1-1.5|
|Nodular cast iron||HB240-300||200-400||0.1-0.4||0.1-0.5|
|Alloyed cast iron||HB240-300||150-300||0.05-0.4||0.1-0.5|
|PCD||AI and AI alloys||200-3000||0.05-0.5||0.05-1.0|
|Product Name||PCD/CBN/MCD/ND Inserts High Quality Diamond Inserts|
|Type||PCD/ MCD/ ND/ CVD/ CBN|
|Features||No burs, high precision, good surface effects and high cutting efficiency and long work time|
|Advantages||Factory direct sales, short delivery time; non-standard customization, quality assurance; attentive service, customer first|
|Welcome and congratulations!You found us a professional factory!|
|Size & Design||
1.We not only supply all kinds of high quality solid carbide turning tool ,but
also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw
Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.
2. We have 0.02mm-25mm different diameter and 38mm-150mm length
Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can
produceaccording to your drawing,too.Or the hot deisgned recommend
|4. HS Code reference for you to control everything:8207709000.|
|5. Mixed size and types in one batch available.|
|6. For distributor,we can label your brands on cutters and plastic box.|
1. We accept Mix coated in the same model number, Also one batch with
different coating and types.
|2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!|
|MOQ (Small Qty )||5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.|
We package all our goods carefully.We also accept your packing design OEM
packing it for your control.
|Samples Service||1. Some items free samples for you.|
|2. Free samples but pay shipping cost.|
|3. Lowest shiping fee for you to choose.|
|4. Order to us,sample fee will be refund to you.|
|5. Become our VIP clients,free samples for you!|
|6.OEM samples are hot welcome.|
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
