|Diameter:||D2-20MM||Other Service:||OEM/ODM Or Custom-made|
|Precision:||High Precision||Keywords:||PCD Tool, Insert Cutting Tool,PCD Cutting Tool|
|Suitable For:||Acrylic, PVC, PC, PET, PMMA, Gold, Silver||DELIVERY TIME:||3-7 Working Days|
|Types Of CNC Cutting Tools:||Single Flute /Two Flutes||Package:||1 Piece/box|

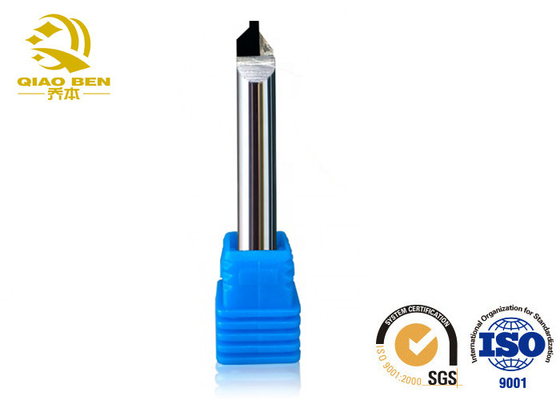

pmct milling cutter end mill,
high precision milling cutter end mill,
acrylic pcd end mill
The PCD milling cutter is polished with polycrystalline diamond. The friction coefficient of diamond is low, and the affinity with non-ferrous metals is small, which can prevent the metal and the cutter from sticking together. It is suitable for processing watch accessories, mobile phone digital product workpieces, aluminum high-gloss products, gold Silver jewelry, optical parts, military industry, auto parts and other precision and ultra-precision machining industries. Our company specializes in customizing, and various specifications and sizes can be customized.
The ultra-fine particle high-quality bar material is selected, and the imported five-axis tool grinder is used for processing. Strict tool inspection standards ensure the consistency of tool size and runout.
The unequally divided U-shaped groove design makes the chip removal space larger and the chip removal smoother, which is suitable for large-feed cavity processing and end-edge plunging processing. Fine machining, no yin and yang surfaces, vibration lines, bright lines.
The rake face polishing makes the surface finish of the workpiece to be processed higher, and the sharp corner protection greatly enhances the rigidity and shock resistance of the tool, reduces tool breakage, prolongs the service life of the tool, reduces the number of tool changes, and improves the processing efficiency.
The new double relief angle design enhances the wear resistance, shock resistance and chipping resistance of the tool, and prolongs the service life of the tool.
The suitable negative rake angle design is adopted, taking into account the strength and sharpness of the cutting edge, and at the same time, the large core diameter is used to enhance the rigidity of the tool and make it more stable in cutting and chip removal. The ultra-wide-capacity chip removal has the function of powerful cutting, and the chips are discharged more smoothly, which can realize high-speed machining, and the workpiece is high-precision and glossy.
The chamfering layout of the shank is easier to clamp, and the quality of laser marking on the shank is more guaranteed.
In ultra-precision machining, in addition to high-precision machine tools and ultra-stable machining environment, the main factors to ensure the quality of the machined surface are high-quality tools. Natural diamond has high hardness, good wear resistance, high strength, good thermal conductivity, low friction coefficient with non-ferrous metals, good adhesion resistance, and excellent corrosion resistance and chemical stability. It can grind extremely sharp blades and is considered to be It is the most ideal tool material for ultra-precision cutting. It has an important position and is widely used in the field of machining, especially in the field of ultra-precision machining.
In ultra-precision machining, the two basic precisions of single crystal diamond tools are the edge profile accuracy and the blunt radius of the edge. It is required that the roundness of the cutting edge of the arc tool for processing aspherical lenses is less than 0.05 μm, and the straightness of the cutting edge for processing polyhedral mirrors is 0.02 μm; Sharpness, in order to meet various processing requirements, the radius of the blade edge ranges from 20nm to 1μm.
|Product Name||PCD/CBN/MCD/ND Inserts High Quality Diamond Inserts|
|Type||PCD/ MCD/ ND/ CVD/ CBN|
|Features||No burs, high precision, good surface effects and high cutting efficiency and long work time|
|Advantages||Factory direct sales, short delivery time; non-standard customization, quality assurance; attentive service, customer first|
|Welcome and congratulations!You found us a professional factory!|
|Size & Design||
1.We not only supply all kinds of high quality solid carbide turning tool ,but
also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw
Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.
2. We have 0.02mm-25mm different diameter and 38mm-150mm length
Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can
produceaccording to your drawing,too.Or the hot deisgned recommend
|4. HS Code reference for you to control everything:8207709000.|
|5. Mixed size and types in one batch available.|
|6. For distributor,we can label your brands on cutters and plastic box.|
1. We accept Mix coated in the same model number, Also one batch with
different coating and types.
|2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!|
|MOQ (Small Qty )||5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.|
We package all our goods carefully.We also accept your packing design OEM
packing it for your control.
|Samples Service||1. Some items free samples for you.|
|2. Free samples but pay shipping cost.|
|3. Lowest shiping fee for you to choose.|
|4. Order to us,sample fee will be refund to you.|
|5. Become our VIP clients,free samples for you!|
|6.OEM samples are hot welcome.|
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
