Product Details:
Payment & Shipping Terms:
|
Diameter: | D2-20MM | Other Service: | OEM/ODM Or Custom-made |
---|---|---|---|
Workpiece: | Aluminum, Acrylic | Material: | Carbide, Single Crystal Diamond (PCD) |
Precision: | High Precision | Coating: | No Coating |

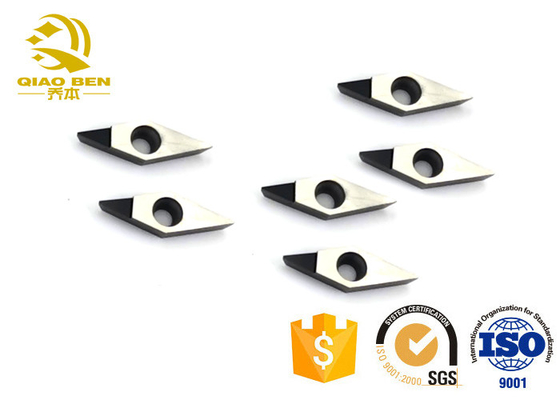

Customized Support: | OEM, ODM | Product Name: | PCD Insert |
High Light: | dcgw pcd turning inserts,no coating pcd turning inserts,dcgw diamond turning inserts |
overview
Diamond tools have the characteristics of high hardness, high compressive strength, good thermal conductivity and wear resistance, and can obtain high machining accuracy and machining efficiency in high-speed cutting. The above properties of diamond tools are determined by the crystal state of the diamond. In diamond crystals, the four valence electrons of carbon atoms form bonds in a tetrahedral structure, and each carbon atom forms covalent bonds with four adjacent atoms to form a diamond structure, which has strong binding force and directionality. This makes the diamond extremely hard. Since the structure of polycrystalline diamond (PCD) is a fine-grained diamond sintered body with different orientations, its hardness and wear resistance are still lower than those of single crystal diamond despite the addition of a binder. However, since the PCD sintered body is isotropic, it is not easy to crack along a single cleavage plane.
Diamond "PCD" is specialized in the finishing of copper, aluminum alloy, cemented carbide, graphite, ceramics and high-hard wear-resistant materials. It has the characteristics of long service life, high production efficiency, high surface finish and high machining accuracy. Compared with cemented carbide and natural diamond tools, it has higher processing efficiency and lower cost, and is widely used in automobiles, diesel engines, motorcycles, aerospace, home appliances, instrument precision machinery and other industries.
Product Name | PCD/CBN/MCD/ND Inserts High Quality Diamond Inserts |
Suitable Material | Gold/Silve/Aluminum/Brass/Acrylic/Plastic/PVC/MDF/Steel |
Type | PCD/ MCD/ ND/ CVD/ CBN |
Features | No burs, high precision, good surface effects and high cutting efficiency and long work time |
Advantages | Factory direct sales, short delivery time; non-standard customization, quality assurance; attentive service, customer first |
Brand | Joeben |
Welcome and congratulations!You found us a professional factory! | |
Size & Design |
1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. |
|
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
|
4. HS Code reference for you to control everything:8207709000. | |
5. Mixed size and types in one batch available. | |
6. For distributor,we can label your brands on cutters and plastic box. | |
Plating |
1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
OEM One-Step Packing |
We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
Samples Service | 1. Some items free samples for you. |
2. Free samples but pay shipping cost. | |
3. Lowest shiping fee for you to choose. | |
4. Order to us,sample fee will be refund to you. | |
5. Become our VIP clients,free samples for you! | |
6.OEM samples are hot welcome. |
PCD Cutting Condition | |||
Work piece | Cutting Speed | Depth of Cut | Feed Rate |
(m/min) | (mm) | (mm/rev) | |
Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
Ceramics | |||
Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
