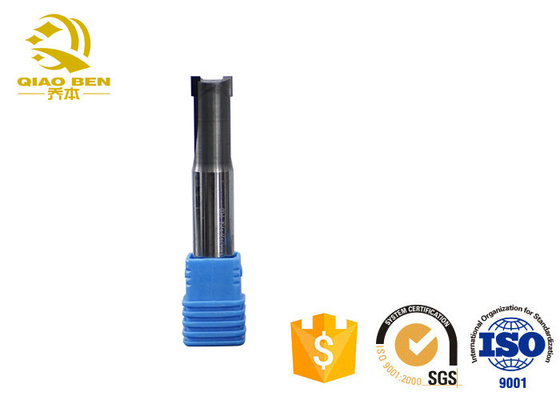

PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm

PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm
PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm

Large Image :  PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: PMCT1152
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Overall Length: 50-150mm Diameter: D2-20MM
Other Service: OEM/ODM Or Custom-made Application: CNC Process
Workpiece: Aluminum, Acrylic Brand Name: Diamond Cnc Milling
Warranty: 3 Years Material: Carbide, Single Crystal Diamond (PCD)
High Light:

PCD Flute diamond milling cutter

,

Aluminum Alloy diamond milling cutter

,

8mm PCD Milling Cutter

PCD flute diamond milling cutter aluminum alloy high gloss cutting cutter NC machining tool router bit 8mm

PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm 0
overview

      Applicable scope: gold, silver, copper, aluminum, acrylic, PC, PET...Such as non-metallic materials carving milling processing.Hardware parts;Auto parts;Surface treatment;Process products;Carved;Copper batch flower;Mobile phone metal buttons;Phone case;Digital shell;Non-metallic highlights;Watch surface, word nail;Case inside the knife;Nameplate, plate highlights flower;Car CD lines;Multicolored pattern;Sun pattern;Highlights of aluminum products;Electrical shell flower;Electrical panel;Vehicle panel;Computer peripherals;Transparent computer case;Acrylic polishing;Acrylic (plexiglass) highlight (polishing) chamfer;The lens;Windows;Motor commutator precision car etc.3. Both  Customers send detailed inquiry to us by email;



Slotting【Grooving on sackke CNC machine (less, the machine is automatic), grooving in the clamping workshop (accounted for the majority, manual grooving)】.

Weld【Use solder to weld the diamond on the knife pole, then into the vacuum welding furnace bake fixed】.

The working procedure that different cutter passes is different, specific by project decision, basically these 7 kinds of circumstance.

Single crystal workshop (This workshop only makes single crystal diamond cutting tool,manual grinding wheel, directly grinding diamond knife at the Angle of the grinding wheel, directly grinding the finished product).

Need to go through the precision workshop (laser or slow wire), single crystal workshop, strong grinding.[after tool welding, transfer to precision workshop, laser finishing Angle, then transfer to single crystal workshop, single crystal grinding good Angle, transfer to strong grinding finishing Angle (arc).

After welding, transfer to PCD workshop strong grinding machine, strong grinding fine repair edge, this is the finished product (most workshop PCD tools).

Some diamond knives need a single crystal workshop grinding wheel to grind the Angle, and then transfer the strong grinding Angle (blade).

Some diamond cutters require laser or slow wire cutting to finish the diamond and then turn over to a powerful sharpening blade.

Some tools need to go through laser, laser cutting Angle, and then transfer to the single crystal workshop, grinding wheel control Angle.

Precision workshop laser machine, laser direct finishing products.



Features you should know

1.Designed to machine tool steel,alloy steel,mold steel,and other high hardened materials;

2.Suitable for aluminum,aluminum alloy,copper&non-ferrous materials;

3.Designed for HRC45-55 and HRC60;

4.Altin coating for high wear resistance;

5.High quality with reasonable price;

6.Rapid delivery;

7.Altin/sin/dlc coating and customized coating;

8.Customized requirements.

Welcome and congratulations!You found us a professional factory!
Size & Design

1.We not only supply all kinds of high quality solid carbide turning tool ,but

also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw

Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.

2. We have 0.02mm-25mm different diameter and 38mm-150mm length

Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you

to choose.

3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can

produceaccording to your drawing,too.Or the hot deisgned recommend

to you.

4. HS Code reference for you to control everything:8207709000.
5. Mixed size and types in one batch available.
6. For distributor,we can label your brands on cutters and plastic box.
Plating

1. We accept Mix coated in the same model number, Also one batch with

different coating and types.

2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!
MOQ (Small Qty ) 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.

OEM

One-Step Packing

We package all our goods carefully.We also accept your packing design OEM

packing it for your control.

Samples Service 1. Some items free samples for you.
2. Free samples but pay shipping cost.
3. Lowest shiping fee for you to choose.
4. Order to us,sample fee will be refund to you.
5. Become our VIP clients,free samples for you!
6.OEM samples are hot welcome.



PCD Cutting Condition
Work piece Cutting Speed Depth of Cut Feed Rate
(m/min) (mm) (mm/rev)
Aluminum(5~8% SI ) 350~1600 0.05~2.50 0.10~0.40
Aluminum(8~12% SI ) 350~1300 0.05~2.50 0.10~0.40
Aluminum(14~18% SI ) 160~800 0.05~2.50 0.05~0.25
Copper 350~1000 0.15~2.50 0.05~0.20
Sintered Carbid 15~25 0.05~0.60 0.10~0.20
Glass Fiber 100~800 0.15~0.50 0.03~0.25
Carbon 160~700 0.15~2.50 0.15~0.40
High Aluminum 70~250 0.05~1.50 0.03~0.15
Ceramics
Wood 1000-2500 0.2~5.0 010~0.50

  • Suitable for workpiece Carbon Steel, Aluminium alloy, Cuprum, Acrylic
  • HRC:  45/55/60/65 HRC ,After quench, for processing large hardness of 150°
  • Other Service:  OEM/ODM or custom-made
  • Effect:   cut aluminum parts in large area, saving time and labor
  • Machining parts:Outer circle and inner circle of turning parts

PCD Flute Diamond Milling Cutter Aluminum Alloy High Gloss Cutting 8mm 1

Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
