|Overall Length:||50-100mm||Workpiece:||Aluminum, Acrylic|
|Diameter:||D2-20MM||Other Service:||OEM/ODM Or Custom-made|
|Precision:||High Precision||Sample Order:||Accepted|
tapered milling cutters,
tapered ball nose end mill

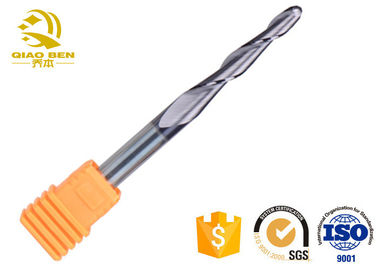

Tapered End Mill Cutter High Quality Tungsten Carbide Tapered End Mill Cutter
Can on heat treatment of materials directly under 60 ° the rough machining to finish machining, reduce the changeover times, improve efficiency, save making schedule.2 blade cutting groove is given priority to, 4 blade with lateral milling and face milling is given priority to, suggested that cutting HRC60 ° within the steel material.
Smooth chip removal design, enhance the resistance to damage, improve the processing surface finish, the choice of fine particle quality bar, processing using imported five-axis tool grinder, strict tool inspection standards.
The large core diameter design greatly enhances the rigidity and shock resistance of the cutter, reduces the breakage and prolongs the service life.Through passivation technology, the tool adhesion particles are completely removed, passivation of the blade, processing of high hardness materials is more easy to use, anti-break blade, prolong the service life of the tool.
Sharp blade, irregular special new thin blade sharp while ensuring the durable wear of the tool.
|EDP No.||Dia(mm)||Angle||Flute Length(mm)||Flutes||Shank Dia(mm)||OverLength(mm)|
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Product composition:Tungsten steelF-ED-001 end mill Features
1. Suitable for aluminum alloy (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
Triangle large groove, new arc blade, double edge belt, can be machined on the surface of inclined Angle, without reducing cutting parameters.Large groove design, fast chip removal, less tool wear, quickly improve cutting efficiency.
Edge passivation processing not only makes the edge strength to enhance the life of the tool, but also can make in the later processing than no passivation tool processing more smooth and bright, tool handle tail chamfering processing, make clamping easier, but also reduce the tool on the fixture wear.
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
