Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangdong, China (Mainland) | Overall Length: | 50-100mm |
|---|---|---|---|
| Diameter: | D2-20MM | Suitable For: | Carbon Steel |
| Other Service: | OEM/ODM Or Custom-made | ||
| High Light: | ball nose end mill cutter,2 flute ball nose end mill |
||

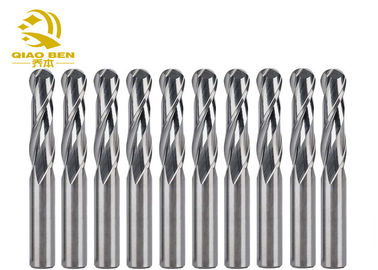

Carbide Ball End Mill Solid Carbide 2 Flute Taper Ball Nose Wood End Mill
overview
1, Super raw material
Kennametal Carbide from USA, Carbide from Sweden, CB Carbide from Taiwan, Zhuzhou Carbide from Hunan province.
2, Reasonable price
Pleasure to offer you more discount according to your quantity.
More quantity, more discount.
3, Application and usage
Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
4, Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25 | Germany K44 & K40 | H10F |
| Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2 |
| EDP No. | Dia(mm) | Angle | Flute Length(mm) | Flutes | Shank Dia(mm) | OverLength(mm) |
| 2207010605 | 0.4 | 90 | 8 | 2 | 4 | 45 |
| 2207010229 | 0.5 | 127 | 0.87 | 2 | 4 | 50 |
| 2207010160 | 0.5 | 90 | 5 | 2 | 4 | 50 |
| 2207010342 | 1 | 71 | 9.94 | 2 | 4 | 50 |
| 2207010089 | 1 | 90 | 5.00 | 2 | 4 | 50 |
| 2207010085 | 1.2 | 120 | 5 | 2 | 4 | 50 |
| 2207010606 | 1.2 | 90 | 5.0 | 2 | 4 | 50 |
F-ED-001 end mill Features:
1. Suitable for aluminum alloy (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
