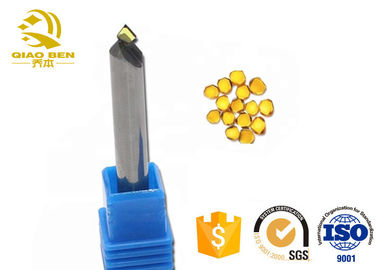

High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM

High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM
High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM

Large Image :  High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: MCDMT16
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Suitable For: Carbon Steel Product Composition: Single Crystal,Tungsten Steel
Overall Length: 50-100mm Precision: High Precision
Other Service: OEM/ODM Or Custom-made Diameter: D4-20MM
High Light:

diamond lathe cutting tools

,

diamond end mill cutting tools

,

matte effects diamond milling cutter

Diamond Milling Tools Single crystal highlight turning tool manufacturers non - standard tools customized

High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM 0

overview



     High quality natural diamond is selected, and the single crystal of natural diamond is welded to the tool bar by special welding process.



    It is made by special geometric Angle design and cutting edge grinding technology.According to customer requirements into a variety of angles, radians, mainly used for aspheric surface and free optical surface processing, wiener processing, ultra-precision processing, such as: used for turning optical plexiglass, high finish non-ferrous metals, ceramics and so on.



    Customers' specific requirements for use should be clearly communicated with our technical staff. We recommend appropriate products according to your specific situation, so as to reduce costs while ensuring the performance of the products.

Product name Diamond Milling Tools

























Application Apparatus CNC equipment
Optional Material Natural diamond,MCD,CVD,PCD,etc.
Diamond Size 0.25mm to 8mm
Shank Material Carbide/stainless steel
Shank Thickness 6mm
Rotate speed 10000~30000r/min
Feed velocity 1500~5000mm/min

Machinable

materials

gold,silver,copper,aluminum,acrylic and other Non-ferrous metal material
  • Suitable for workpiece Carbon Steel, Aluminium alloy, Cuprum, Acrylic
  • HRC:  45/55/60/65 HRC ,After quench, for processing large hardness of 150°
  • Other Service:  OEM/ODM or custom-made
  • Effect:Highlights or matte effects
  • Machining parts:Outer circle and inner circle of turning parts

Our company production of natural diamond highlights mirror tool, blade cutting materials for high quality natural diamond industry, suitable for processing of non-ferrous metals (copper, aluminum, zinc, titanium, etc.) as well as the organic board face, the cylindrical part highlights the mirror turning processing, high precision of the blade arc and experienced edge grinding process, the assembly on the stability good CNC machine can make the processed surface of the workpiece after cutting the mirror effect.

High Precision Carbide And Diamond Tooling Diamond Milling Cutter D4-20 MM 1

Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “
JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “
JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
