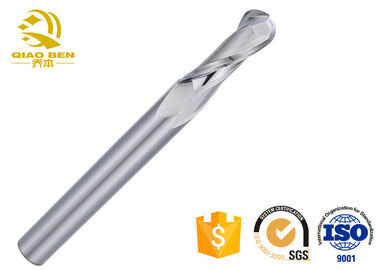

Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance

Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance
Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance

Large Image :  Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: BEM10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-5work days
Payment Terms: L/C, T/T, D/A,
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Overall Length: 35-100mm
Diameter: D1-20MM Application: CNC Process
OEM&ODM: Available Product Composition: Tungsten Steel
High Light:

ball nose milling cutter

,

2 flute ball nose end mill

carbide tungsten steel ball head double 60 °  CNC round head vertical milling cutter
Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance 0
The use of new fine grain tungsten steel base material has a high wear resistance and strength, dedicated to the high hardness of high-speed cutting applications of all-purpose milling cutter, heat treatment material can be directly high-speed rough machining to finishing, reduce the number of tool change, improve efficiency, save time.2 blade cutting groove is given priority to, 4 blade with lateral milling and face milling is given priority to, suggested that cutting HRC60 ° within the steel material.
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;

noradius of ball noselength of cutshank diameter
01R0.524
02R0.7534
03R1.044
04

R1.5

64
05R2.084
06R2.5104
07R3.0126
08R4.0168
09R5.02010
10R6.02412
11R8.03214
12R10.03616




Tungsten Steel Solid Carbide Ball Nose End Mills High Wear Resistance 1
 Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “
JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “
JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.

Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1.Make sure work piece and machine are stable and use a precision holder.
  • 2.Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3.The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
