Product Details:
Payment & Shipping Terms:
|
| Overall Length: | 40-100mm | Diamond Size: | 0.25mm To 8mm |
|---|---|---|---|
| Diameter Of Cutting Edge: | 0.2-0.9mm; 1-20mm | Sample: | Acceptable |
| Feature: | High Performance Cutting | Workpiece: | Steel\ Stainless\ Cast Iron |
| Model Number: | WNMA0804 #0104-7a73 | Material: | PCD And Tungsten Carbide |
| High Light: | PCBN PCD Tip Cutting Tools,40mm Length Tip Cutting Tools,CBN Tip Turning Inserts Tool |
||

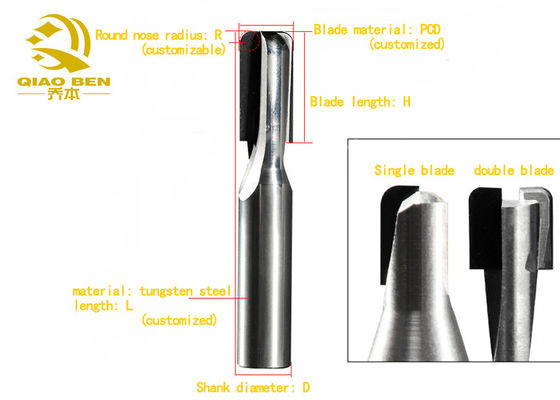

CNC Diamond PCBN tip cutting tools PCD CBN tip turning inserts tool
Diamond tools have the characteristics of high hardness, high compressive strength, good thermal conductivity and wear resistance, etc., which can obtain high machining accuracy and efficiency in high speed cutting.
The above characteristics of diamond cutting tools are determined by the crystal state of diamond.
In diamond crystal, four valence electrons of carbon atoms are bonded according to tetrahedral structure, and each carbon atom forms covalent bond with four adjacent atoms, thus forming diamond structure. The binding force and directivity of this structure are very strong, so that diamond has a very high hardness.
Because the structure of polycrystalline diamond (PCD) is fine grain diamond sintered body with different orientations, its hardness and wear resistance are still lower than that of single crystal diamond despite the addition of binders.
However, because the PCD sintered body is isotropic, it is not easy to crack along a single cleavage plane.
PCD (Polycrystalline Diamond) is a synthetic diamond product that is produced by sintering together selected diamond particles with a metal matrix, using sophisticated technology. The diamond and matrix, when sintered together under high temperatures and pressures, creates a PCD tool blank that is high in uniform hardness and is abrasive resistant in all directions. PCD Inserts is made of PCD tips( cutting from PCD blank) and a carbide substrate.
PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.
It's used to machine wide range materials such as nonferrous metal,likeAluminum,Aluminum Alloy,Copper,Copper Alloy,Tungsten Carbide,Wood,Reinforced Plastic,Rubber,Graphite,Composite Material,Carbon Fiber,Glass Fiber,Composite Ceramic ect....
| Grade | Work-piece material | Hardness | V(m/min) | F(mm/rev) | Ap(mm) |
| CBN | Gray cast iron | HB170-300 | 500-1500 | 0.1-0.4 | 0.1-1.5 |
| Nodular cast iron | HB240-300 | 200-400 | 0.1-0.4 | 0.1-0.5 | |
| Alloyed cast iron | HB240-300 | 150-300 | 0.05-0.4 | 0.1-0.5 | |
| Fe-based P/M | HRC45-50 | 50-150 | 0.05-0.4 | 0.05-0.5 | |
| Hardened steels | HRC55-65 | 80-200 | 0.05-0.2 | 0.05-0.2 | |
| Heat-resistant alloys | 50-200 | 0.05-0.2 | 0.05-0.2 | ||
| PCD | AI and AI alloys | 200-3000 | 0.05-0.5 | 0.05-1.0 | |
| Non-mentals Cemented | 100-500 | 0.05-0.5 | 0.05-1.0 | ||
| Carbide | 20-30 | 0.05-0.2 | 0.05-0.2 |
1. Customers send detailed inquiry to us by email;
2.We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4.We write the proforma invoice and send to customers;
5.Customers make deposit;
6.We make mass production samples;
7.We send mass product samples or send photos to customers for approval;
8.Customers confirm the mass production samples;
9.We start mass production.(we have huge stock for most standard end mills);
10. We show ready products' photos or customers inspect on site;
11.Customers make balance payment;
12.Delivery is arranged. Feedback from customers for better work in future.
13.We also make OEM and customized end mills.
We supply service for re-lapping and polishing the diamond tools to increase tool life and performance. The tools can be re-polished about 60-70 times.We have more than 150 trained technicians who can offer fast re-polishing service for diamonds tools.For more details,please contact our sales.
We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to selection the most suitable tool and machines for your company.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
Our advantage:
