Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper

China ShenZhen Joeben Diamond Cutting Tools Co,.Ltd certification
China ShenZhen Joeben Diamond Cutting Tools Co,.Ltd certification
Low price and good quality,this helped me a lot.Timely booking,satisfactory service and full support.Thank you very much...Im very happy....

—— Mr ruddy

I'm happy to work with you in last years,pretty nice support on business and a special personal.Hope everything goes great next year in your job and family.

—— Arturo Mimbela from USA

Excellent quality and durability as always.Greattach products,awesome prices!

—— Jody willock

AS discussed please find attached my supplier for diamond tooling they make a very high quality product are very professional and good to work with.I have a small amout of there bits at my workshop next time your around if you would like to look at them.They can custom make most bits as well at very reasonable prices.

—— Phillip Charles

I'm Online Chat Now

Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper

Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper
Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper

Large Image :  Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper

Product Details:
Place of Origin: ShenZhen
Brand Name: Joeben
Certification: ISO9001:2015 , GR201744202646
Model Number: MCDMC61
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1.White parts for protect the flute of cutter 2.One plastic pipe packs one piece 3.Use air bubble paper toto encase the plastic pipes 4.Put goods encased with air bubble paper into the carton box 5. Inner box/carton/palle
Delivery Time: 3-8work days
Payment Terms: L/C, T/T, , D/A
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Overall Length: 35-100mm Sample: Sample Provided
Suitable For: Non-ferrous And Non-metals Transport: TNT\DHL\ Fedex\ EMS\ UPS
Precision: High Precision Workpiece: Aluminum, Acrylic
High Light:

Carbide Rod MCD Side Milling Cutter

,

non ferrous MCD Side Milling Cutter

,

Diamond Milling Cutter 5000mm/ Min

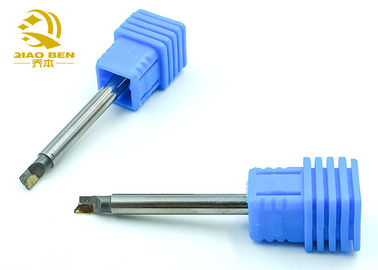

MCD side milling cutter carbide rod cutstom made 6mm-20mm for aluminum copper plastic and other nonferrous metals

Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper 0

Diamond Tool Re-lapping / Polishing/Re-shaping

We supply service for re-lapping and polishing the diamond tools to increase tool life and performance. The tools can be re-polished about 60-70 times.We have more than 150 trained technicians who can offer fast re-polishing service for diamonds tools.For more details,please contact our sales.

Diamond Jewellery Manufacturing Consultation

We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to selection the most suitable tool and machines for your company.

      Diamond is the hardest substance in known minerals and is mainly used to prepare tool turning tools.The cutting edge radius of natural diamond tools after fine grinding can reach 0.01~0.002&micro.M.The natural Single Crystalline Diamond (SCD) cutting edge was still observed to have a smooth blade at high magnification of 1500 times.SCD turning aluminum piston Ra up to 4µM, while Ra is 15~50&micro when the surface is rough when PCD tool is used in the same cutting condition;M.Therefore, the mirror surface can be obtained by using SCD tool and precision lathe for precision and ultra-precision machining.

Natural diamond tools are mainly used for ultra-precision mirror processing of copper, copper alloy, gold, silver, rhodium and other precious non-ferrous metals, as well as special parts, such as video camera disk, optical plane mirror, multi-surface mirror and quadric surface mirror.But its crystal anisotropy, the tool price is expensive.It is mainly used for turning and processing various non-ferrous metals such as aluminum, copper, magnesium and its alloys, cemented carbide, fiber plasticizing materials with strong wear resistance, metal matrix composites, wood and other non-metallic materials.The cutting speed, feed speed and cutting depth during machining depend on the workpiece material and hardness.Because there are some residual bonding metals and graphite between diamond particles, the bonding metals in the form of coalescence or vein distribution will reduce the tool wear resistance and service life.In addition, there is residual amount of solvent metal, which is in direct contact with the diamond surface.

Product name CNC convex side milling Tool
Application Apparatus CNC equipment
Optional Material Natural diamond,MCD,CVD,PCD,etc.
Diamond Size 0.25mm to 8mm
Shank Material Carbide/stainless steel
Shank Thickness 6mm
Rotate speed 10000~30000r/min
Feed velocity 1500~5000mm/min

Machinable

materials

gold,silver,copper,aluminum,acrylic and other Non-ferrous metal material


Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper 1

Business Terms

Accepted Delivery Terms: FOB,CNF,CIF

Accepted Payment Currency: USD, CNY

Accepted Payment Type: T/T, Western Union

Nearest Port: Guangzhou port, Shenzhen port, Shanghai port

Response Rate (last 30 days)



98.6% of buyers who contacted this supplier received a response within 24 hours.

Average Response Time (7 days)

The supplier's average response time of received inquiries is within 12 hours.



Quotation Performance (last 30 days)

The supplier have sent 33 quotes to buyers in last 30 days.

Carbide Rod MCD Side Milling Cutter Non Ferrous 5000mm/ Min For Aluminum Copper 2



Q: Are you Manufacture?

A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

Q: What is your delivery time?

A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

Q: Can you produce non-standard tools?

A: Yes, we can produce non-standard tools as per your drawing.

We also can design tools for you as per your usage requirement

Q: What is your advantages?

A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.



Our advantage:

  • 1. 10 years experience in carbide roll and cutting tool manufacturing
  • 2. From row material to tool produdtion.
  • 3. World top level prodution equipment and rich experience team

ATTACTION:

  • 1. Make sure work piece and machine are stable and use a precision holder.
  • 2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.
  • 3. The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
