Product Details:
Payment & Shipping Terms:
|
| Overall Length: | 50-100mm | Workpiece: | Aluminum, Acrylic |
|---|---|---|---|
| Diameter: | D2-20MM | Sample Order: | Accepted |
| Coating: | Al Tin | Machine Type: | Haller/saacke |
| High Light: | tapered milling cutters,tapered ball nose end mill |
||

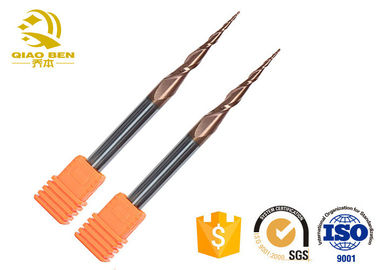

Tapered End Mill Cutter CNC Milling Cutters Tapered Ball Nose End Mill Engraving Bit
Professional processing and application to create a whole series of carbide end milling cutter, with flexibility, high speed and economic advantages, to provide excellent cost performance
Compared with the previous design, the cutting amount of the blade's triangle slant groove is larger, realizing the unprecedented high feed processing, increasing the efficiency by 200%. The precise chamfered contour is round and round, which can effectively avoid the product's bruising and give full play to the full effect of the product's blade.Double blade belt can eliminate burr effectively, the hole surface is smooth and the tolerance range is small.
Screw design, large capacity smooth chip removal, prevent sticking knife, reduce heat, hard alloy compressive strength, high hardness, good wear resistance, smooth handle with precise chamfering clamping more easily, complete specifications to meet the needs of a variety of aperture, support customization.
Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
| EDP No. | Dia(mm) | Angle | Flute Length(mm) | Flutes | Shank Dia(mm) | OverLength(mm) |
| 1 | 0.4 | 90 | 8 | 2 | 4 | 45 |
| 2 | 0.5 | 127 | 0.87 | 2 | 4 | 50 |
| 3 | 0.5 | 90 | 5 | 2 | 4 | 50 |
| 4 | 1 | 71 | 9.94 | 2 | 4 | 50 |
| 5 | 1 | 90 | 5.00 | 2 | 4 | 50 |
| 6 | 1.2 | 120 | 5 | 2 | 4 | 50 |
| 7 | 1.2 | 90 | 5.0 | 2 | 4 | 50 |
| 8 | 1.3 | 90 | 6 | 2 | 4 | 50 |
| 9 | 1.5 | 90 | 5 | 2 | 4 | 50 |
| 10 | 2 | 90 | 5.0 | 2 | 4 | 50 |
| 11 | 2.5 | 50 | 3 | 2 | 4 | 50 |
overview
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany, Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Product composition:Tungsten steelF-ED-001 end mill Features
1. Suitable for aluminum alloy (≤ 65 HRC)
2. High performance alcr series coating,high temperature resistance and high wear resistance.
3. Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
Using multifunctional superfine grain tungsten steel material has better wear resistance and strength to belong to high hardness, high speed milling cutter, cutting edge passivation treatment not only makes the blade intensity increase tool life, also can make in the later than no passivation cutting tool machining more smooth and bright, the handle end chamfering processing, make the clamping more easily, also reduce the cutter wear and tear of the fixture,
ALTIN high aluminum titanium coating process so as to improve the machining efficiency, can increase the tool life under the same cutting speed, unique chip groove shape, even in the groove and in cavity type processing can show the excellent performance,Sharp cutting edge and large screw Angle design effectively prevent the generation of chip, the whole cutting edge seismic design, can inhibit the chatter in the processing process, improve the quality of the processing surface, in order to get the best cutting surface and tool life, please be sure to use high precision, high rigidity, good dynamic balance of the tool holder jig.
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.
